BH2 dual battery holder/holster/combiner

Overview
The AUDIOROOT eSMART BH2 is a rugged and versatile dual battery holder, holster, and combiner designed specifically for use with eSMART lithium batteries. Engineered for professional audio and video workflows, the BH2 offers advanced features and flexible configurations to ensure reliable and efficient battery management in demanding production environments.

Key Features

• Dual Battery Slots
  Accommodates two eSMART lithium batteries with spring-loaded locking mechanisms for secure placement and easy one-handed removal or replacement.

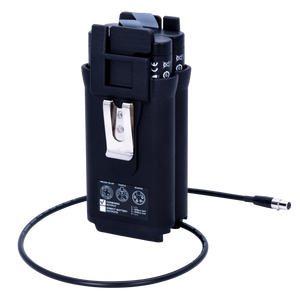

• Flexible Mounting
  Includes a belt/bag clip that can be mounted on either side of the unit, providing maximum versatility and ease of integration into your setup.

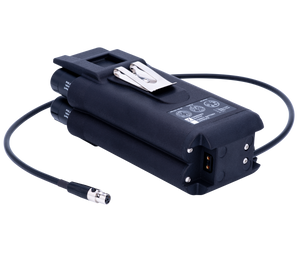

• D-TAP Output Connector
  Features a D-TAP output for distributing combined power from both batteries to your devices.

• Battery Compatibility
  Optimized for 4S2P-style (long format) smart batteries such as the eSMART Li-96neo and Li-98Wh.

Available Configurations

The BH2 is available in two models to match different operational needs:

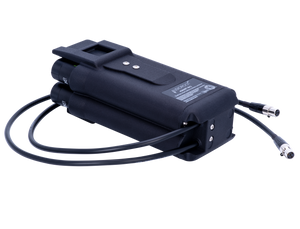

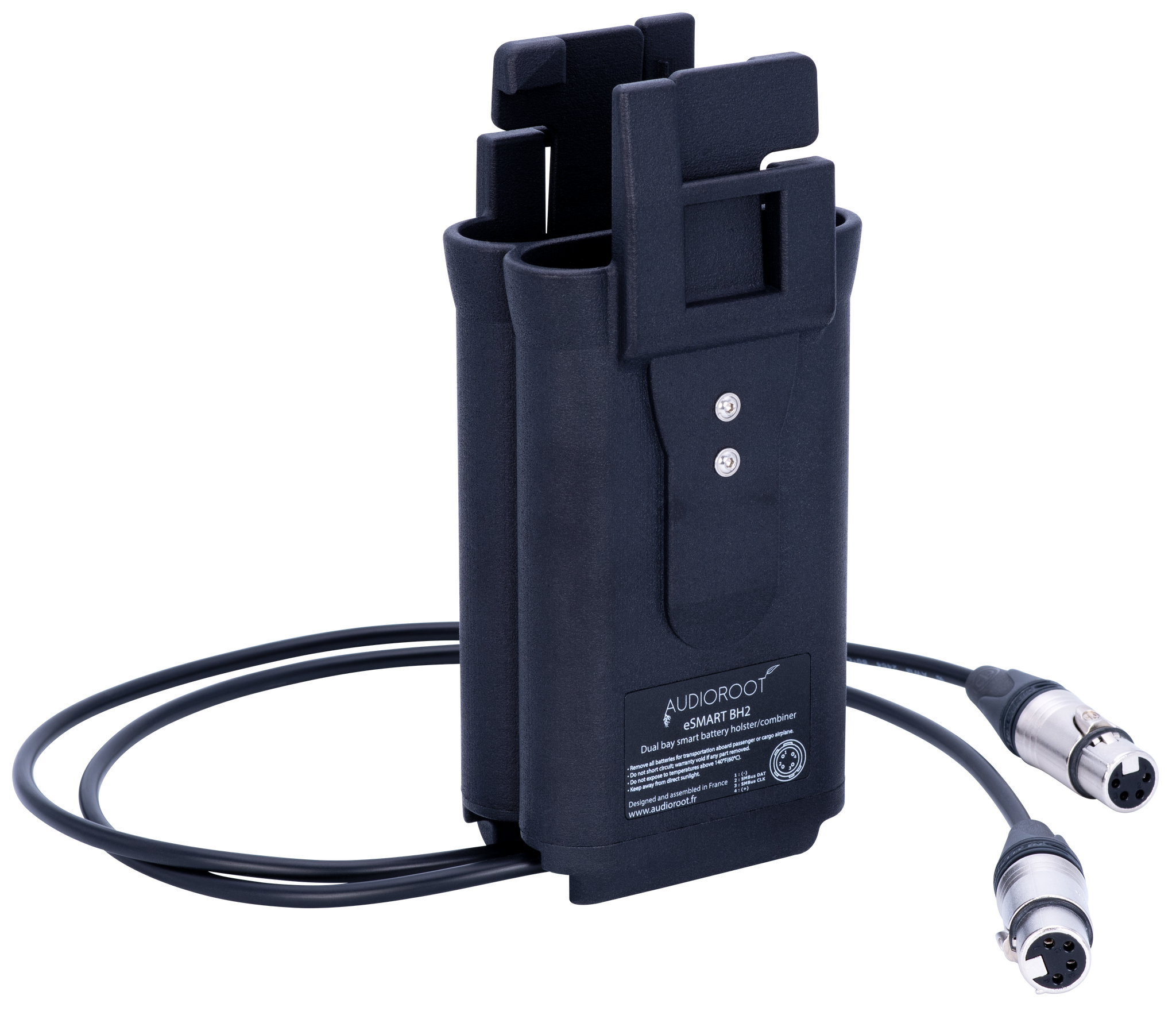

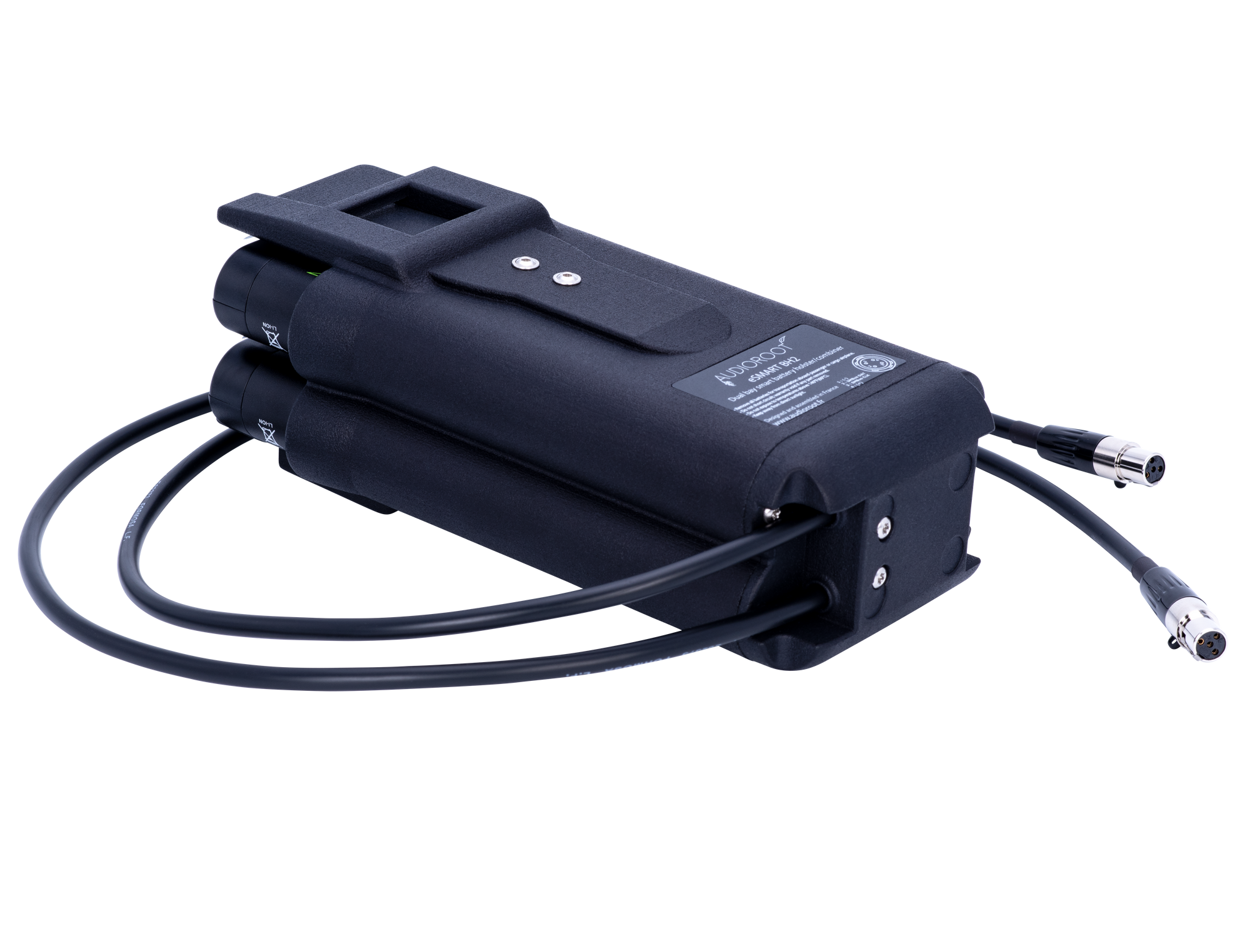

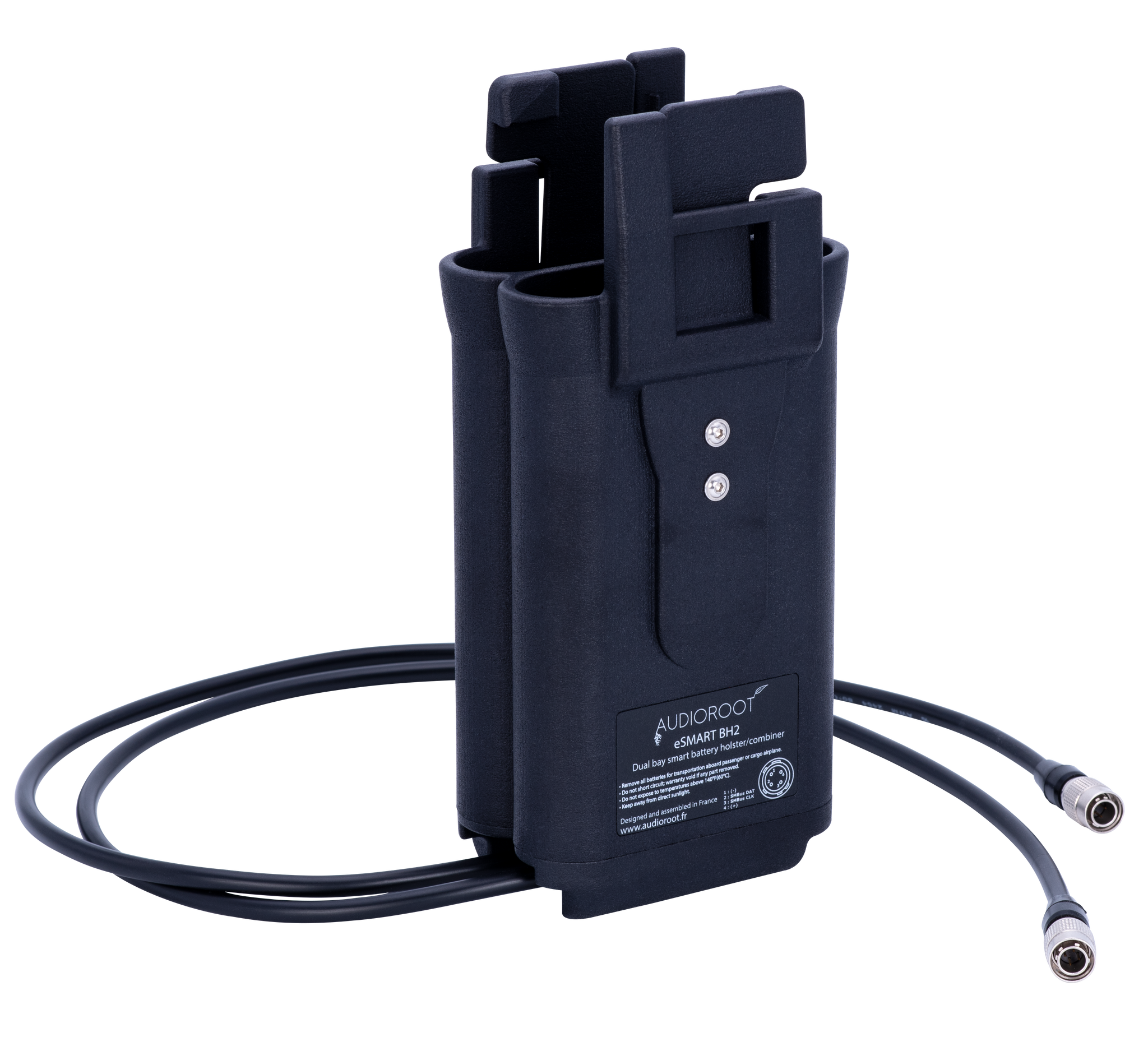

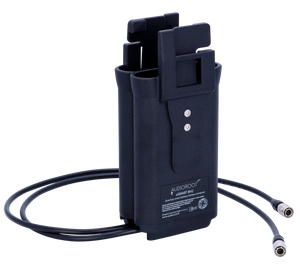

1. Direct Outputs Configuration

   • Independent Power Leads: Two separate lead output cables—one per battery—enable individual battery operation and drainage.

   • Combined D-TAP Output: Offers additional combined power output via the bottom-mounted D-TAP port.

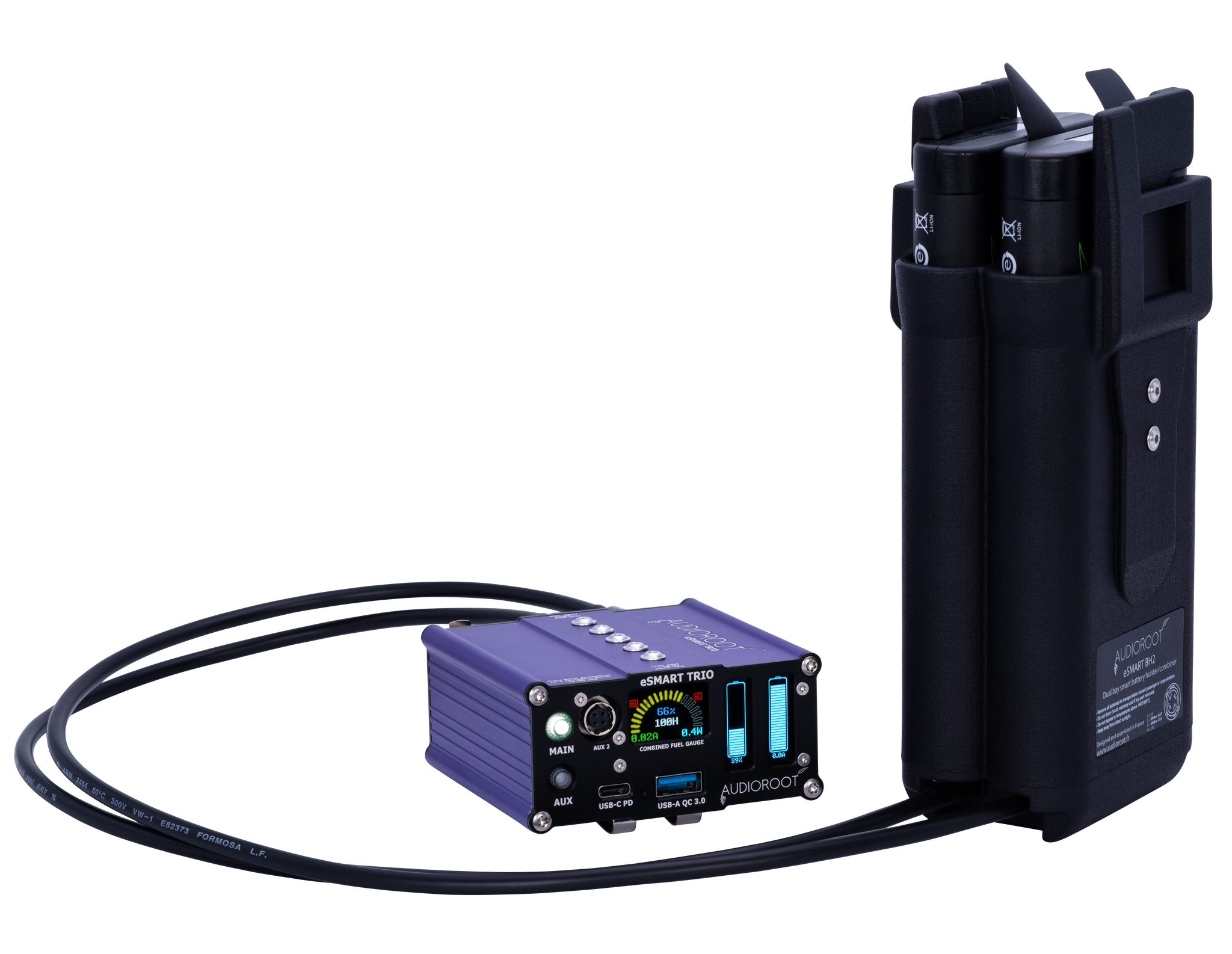

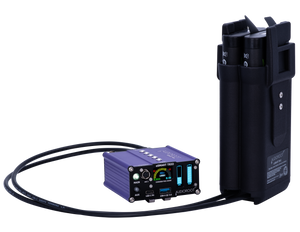

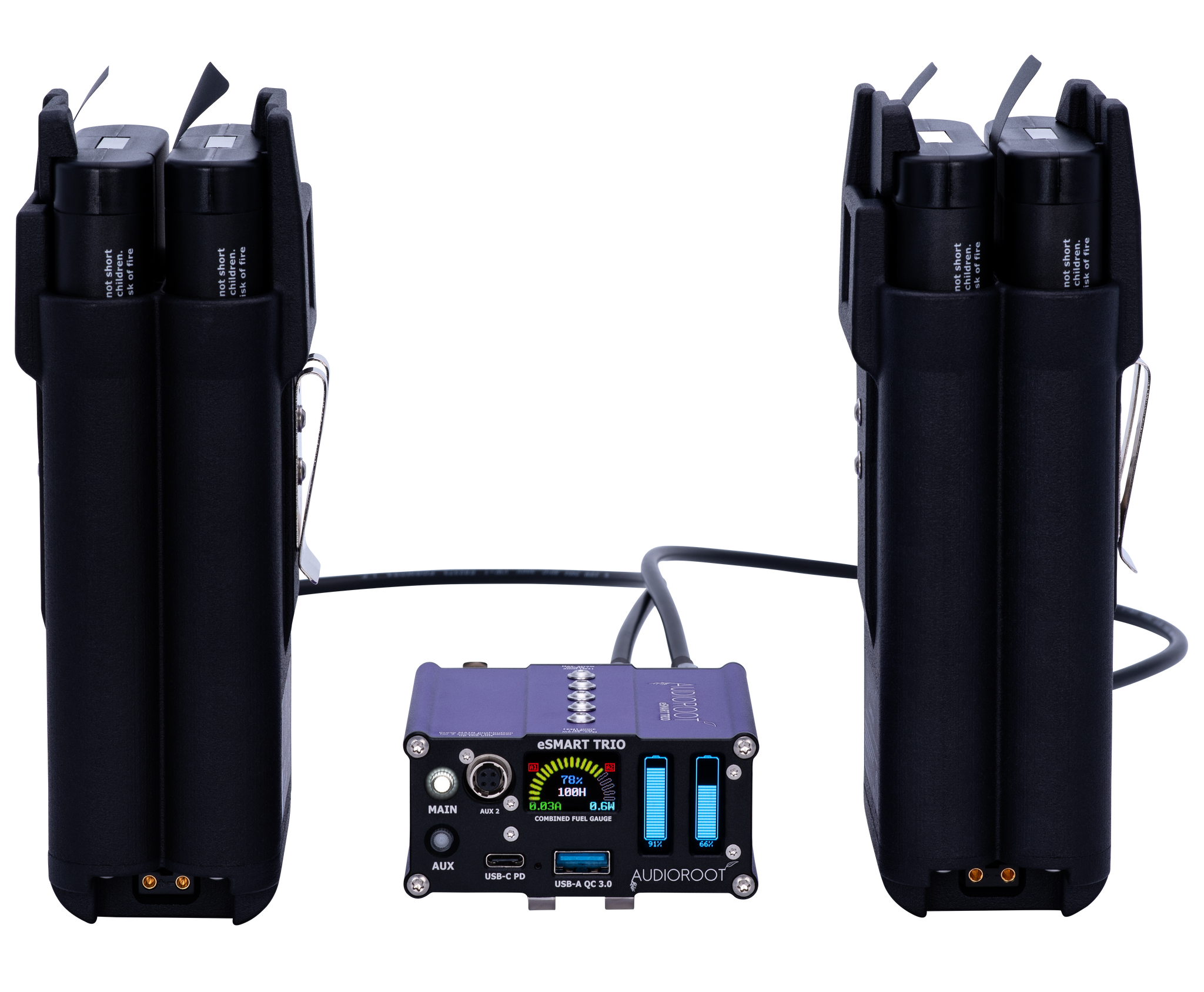

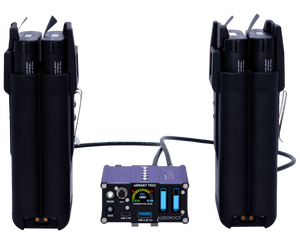

   • Ideal companion for smart battery power distributors such as the eSMART TRIO.

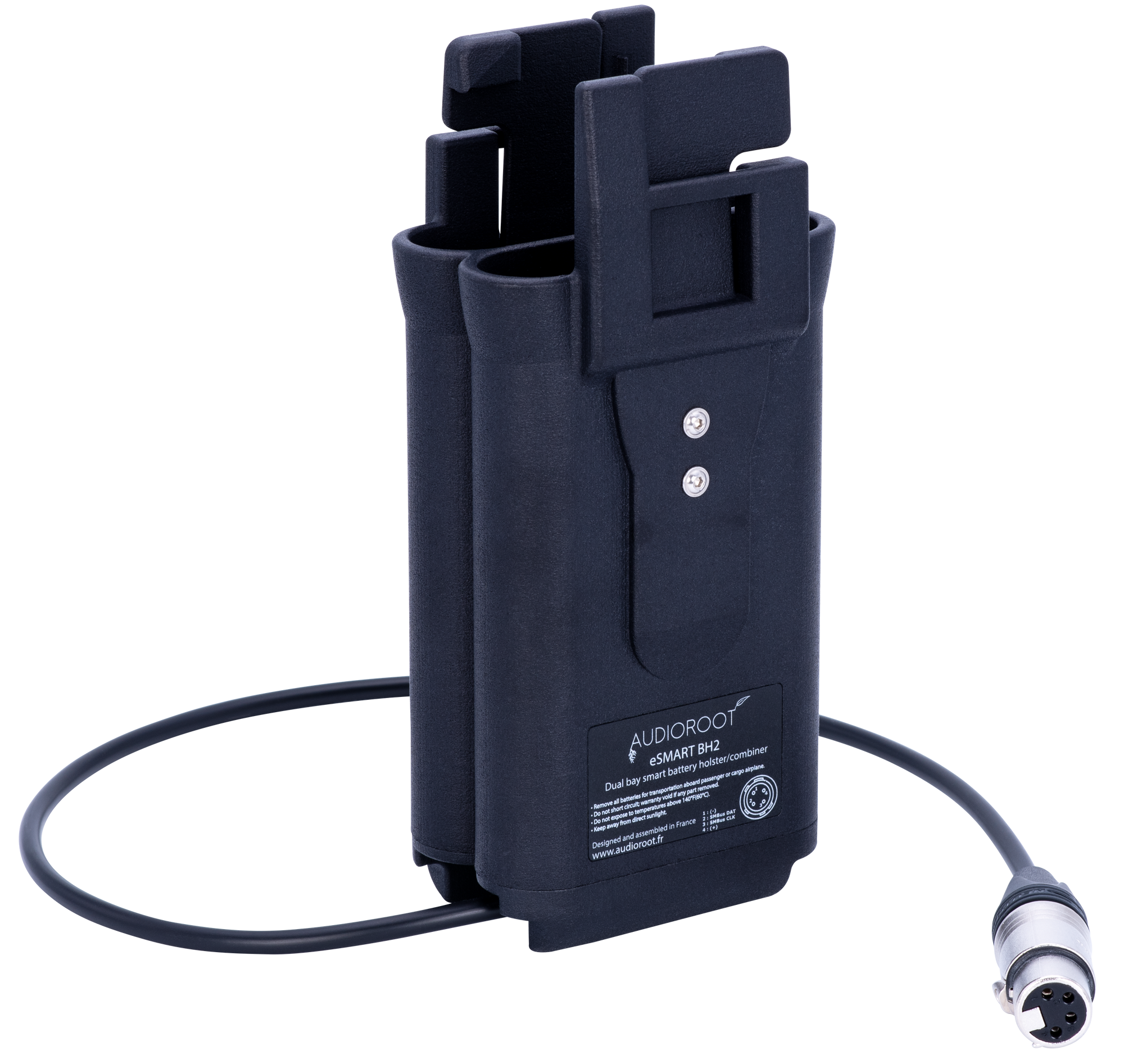

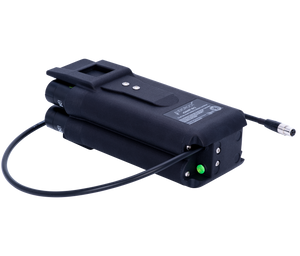

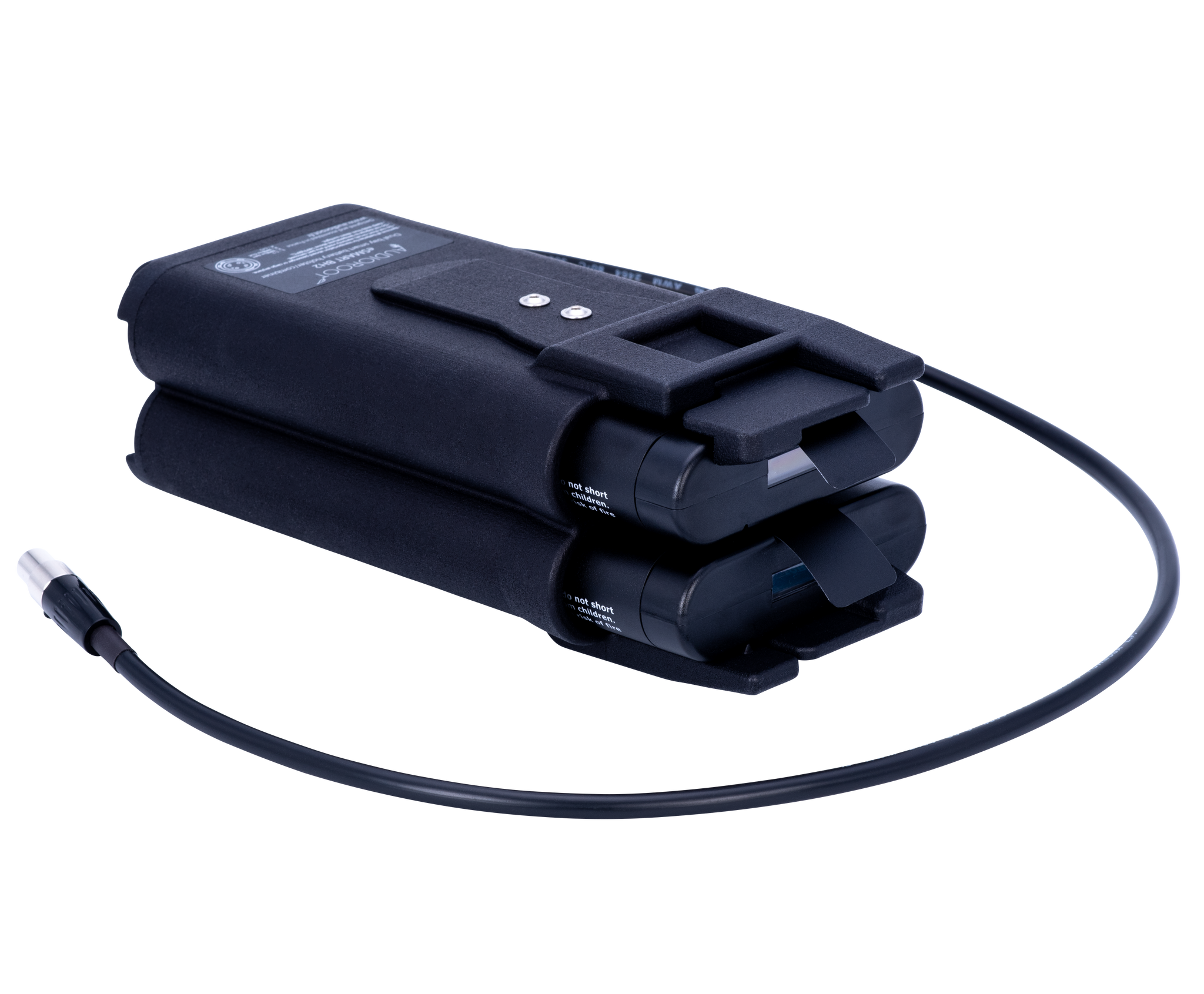

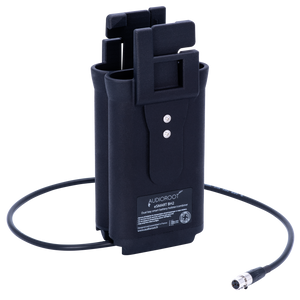

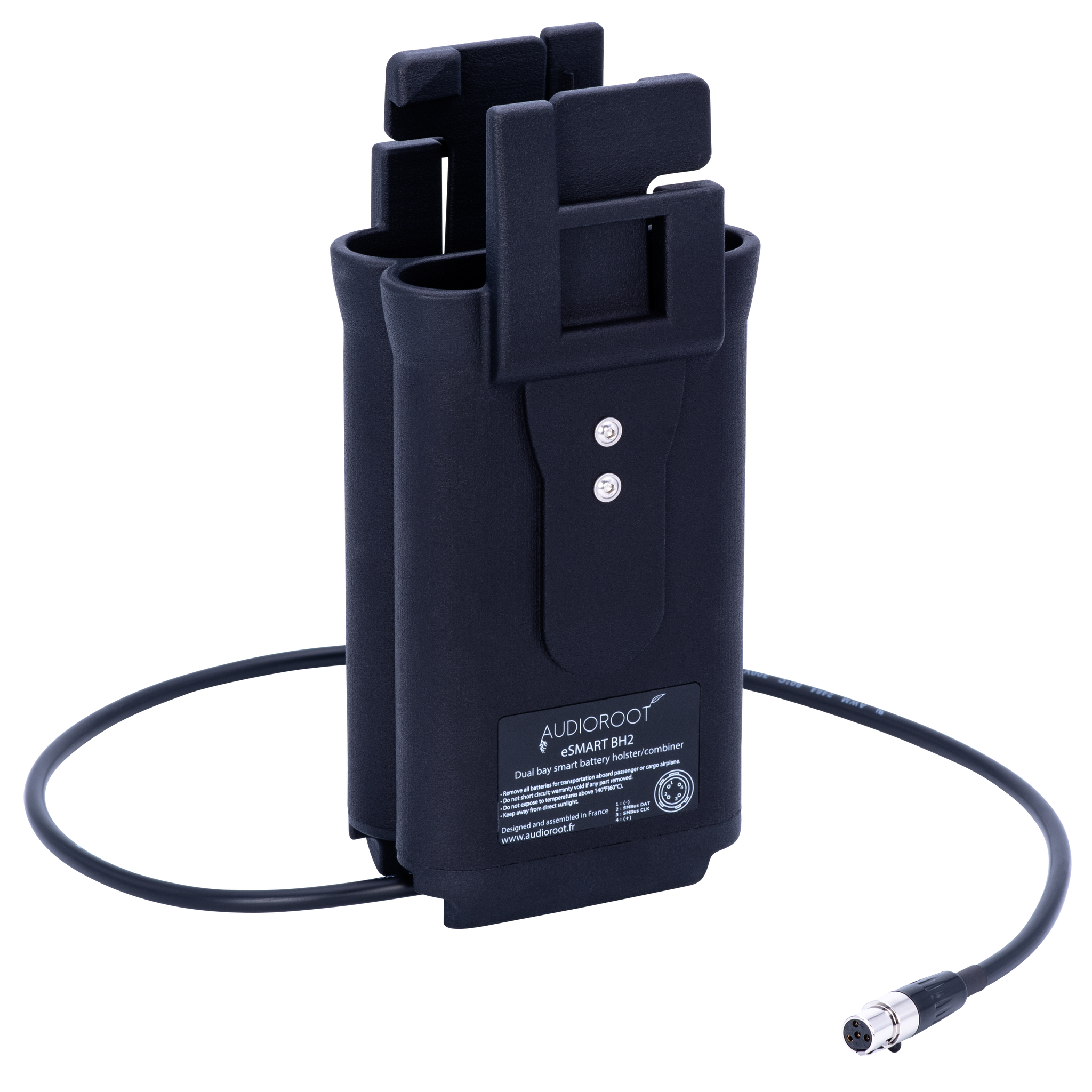

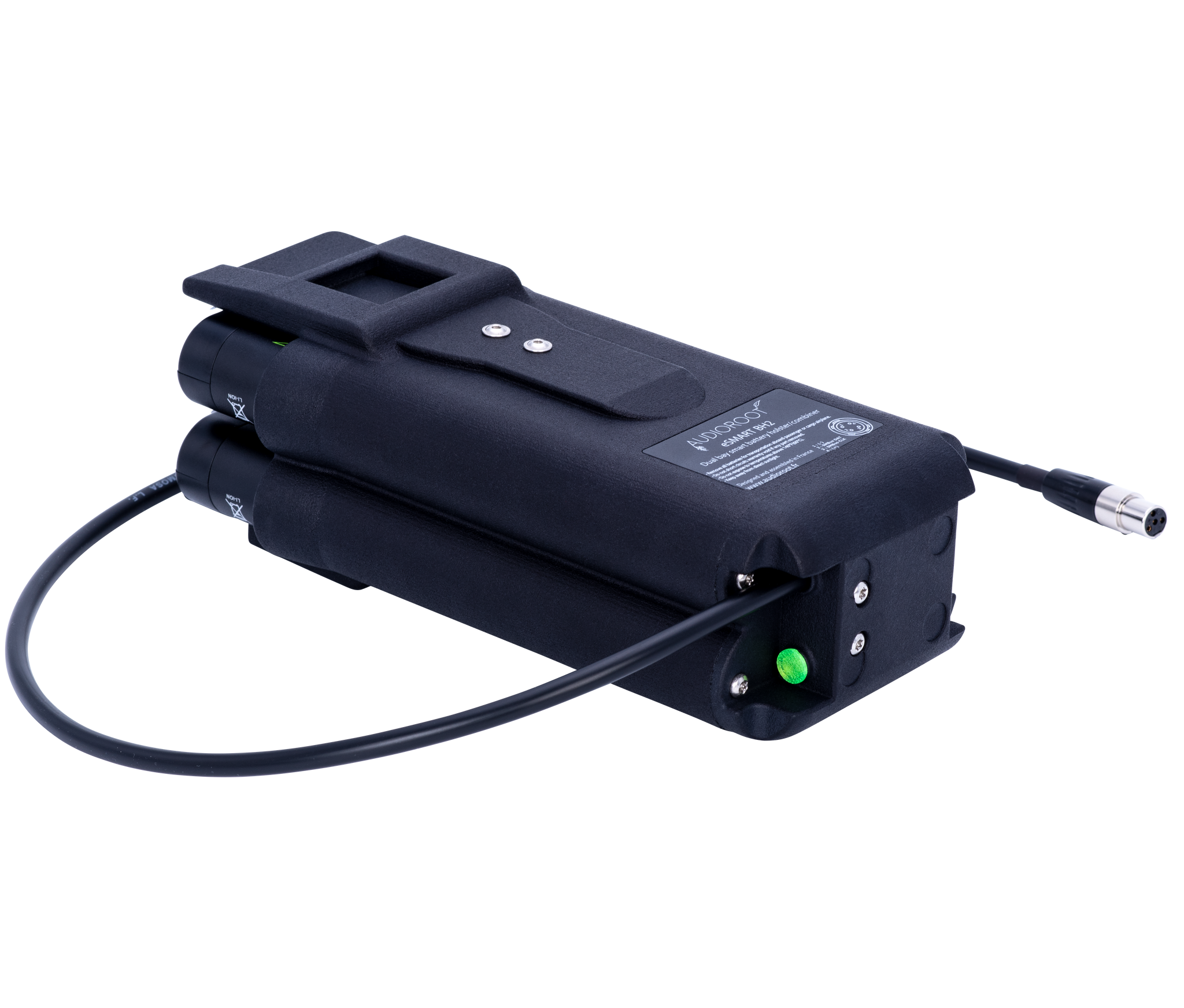

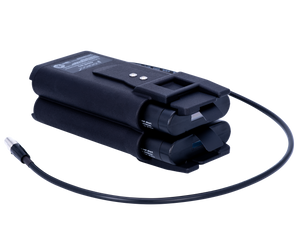

2. Combined Power and Data Output Configuration

   • Single Output Cable: Provides a unified power and data lead that actively combines both batteries.

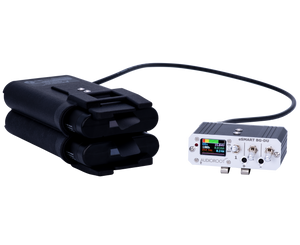

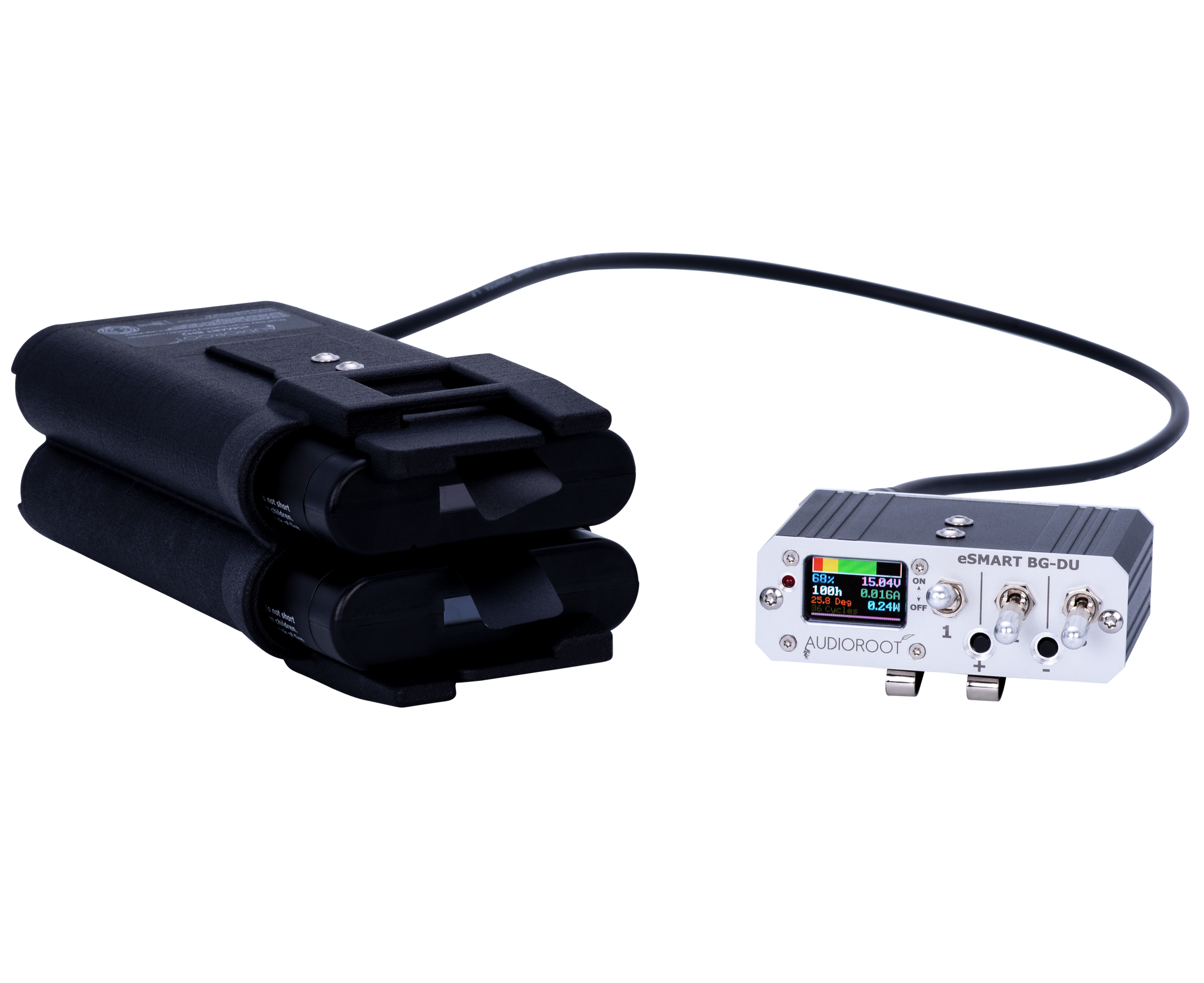

   • Smart Distribution: Perfect for connecting two batteries simultaneously to a single-input smart battery distributor (e.g., BG-DU), enabling them to function as a single power source.

Connector Options

Choose from several professional-grade output connectors to suit your specific setup:

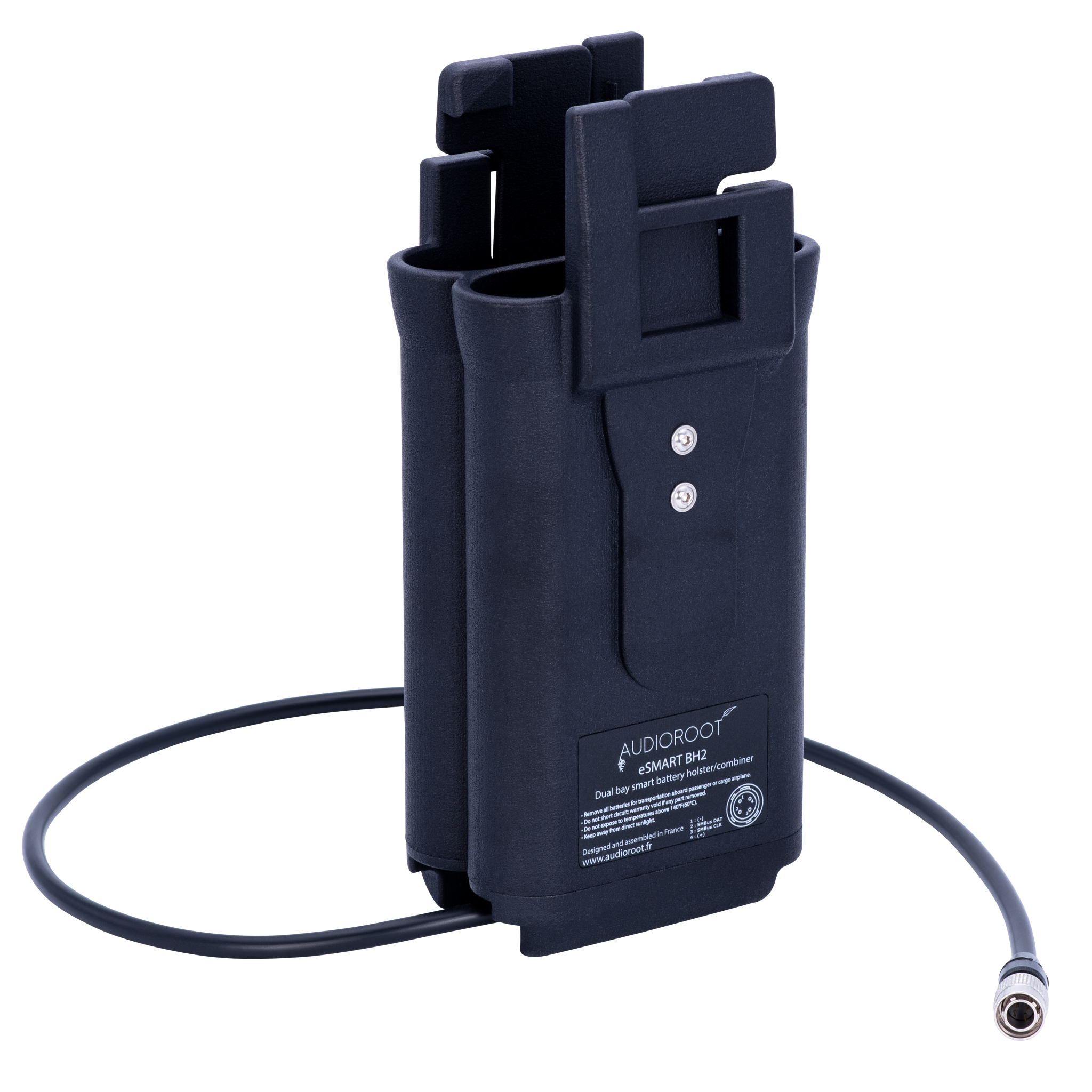

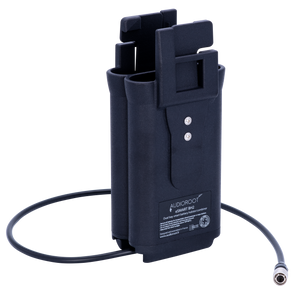

• H – 4-pin Hirose HRS4 (default)

• T – 4-pin Switchcraft TA4F female

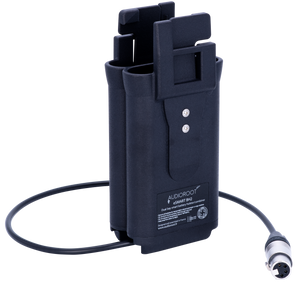

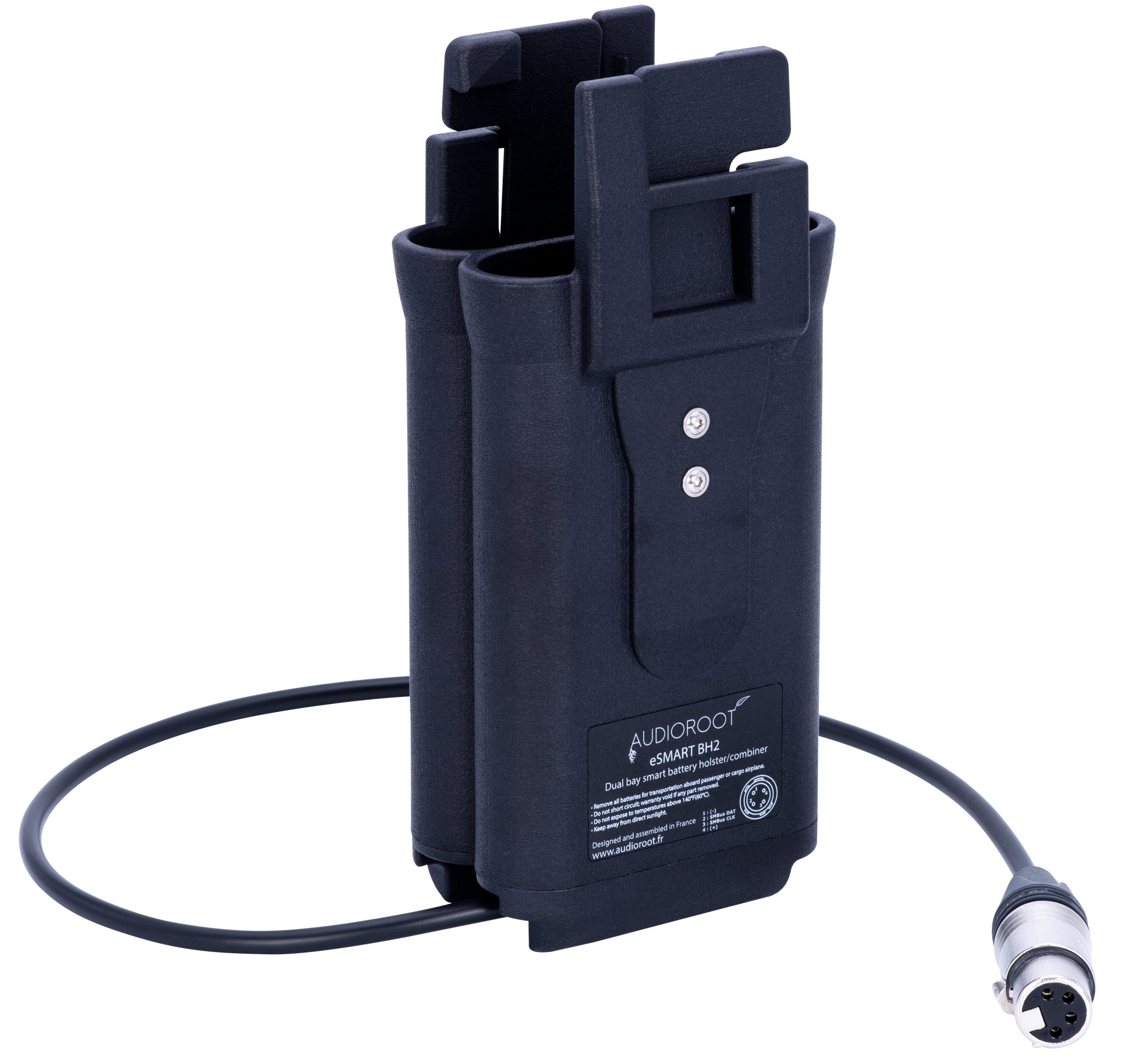

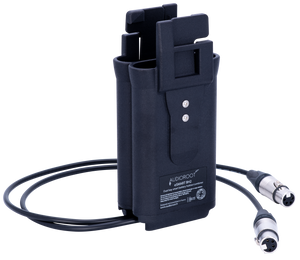

• X – 4-pin Neutrik XLR4F

• 0 – No connector (bare cable for custom setups)

Ordering Information
To order the BH2, use the following format:

BH2-X-Y-ZZZ

• X: Output type

  • D = Direct outputs

  • C = Combined output

• Y: Connector type

  • H = 4-pin Hirose HRS4 (default)

  • T = 4-pin Switchcraft TA4F

  • X = 4-pin Neutrik XLR4F

  • 0 = No connector

• ZZZ: Cable length (in centimeters, from 20 to 150)

Example:

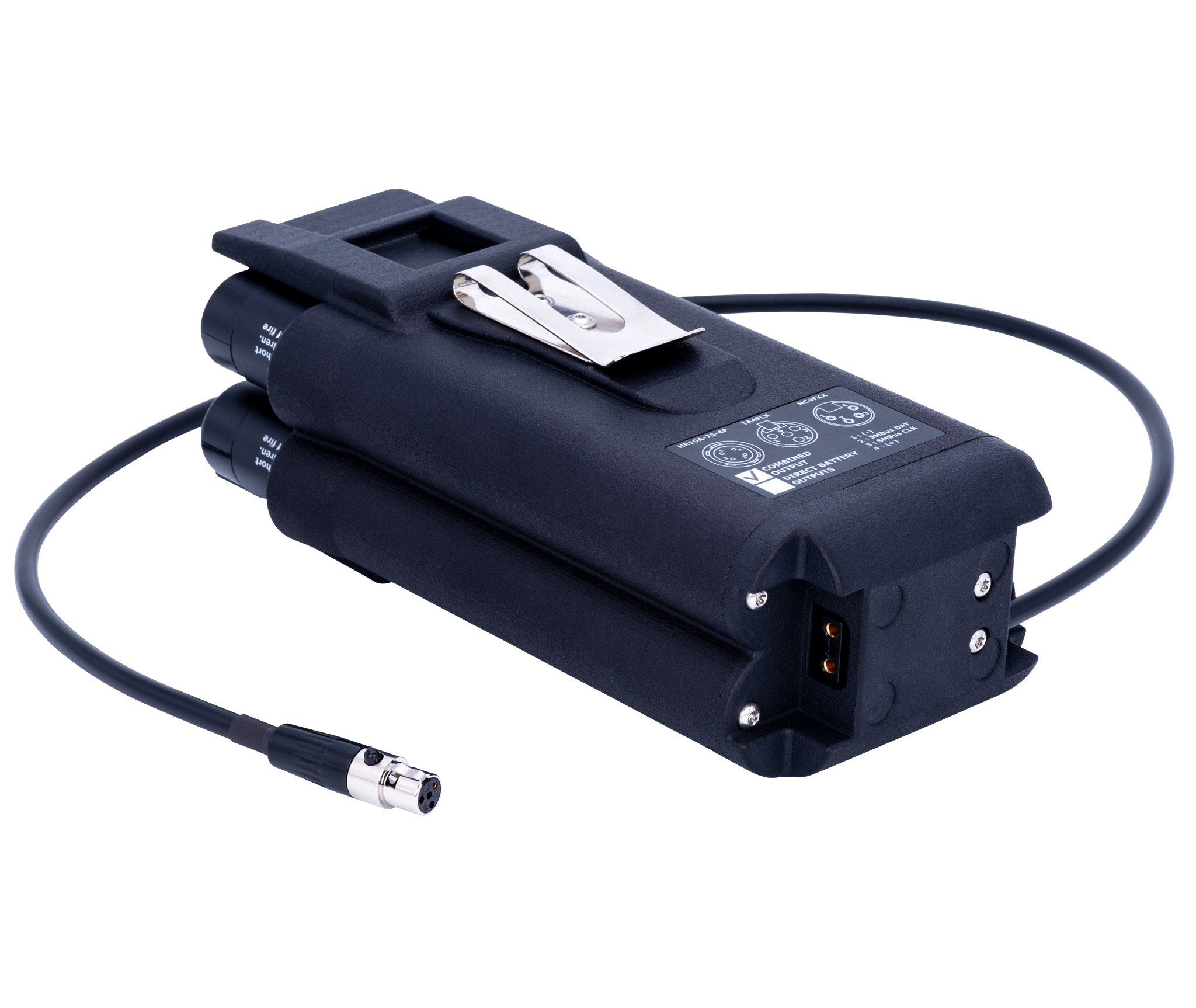

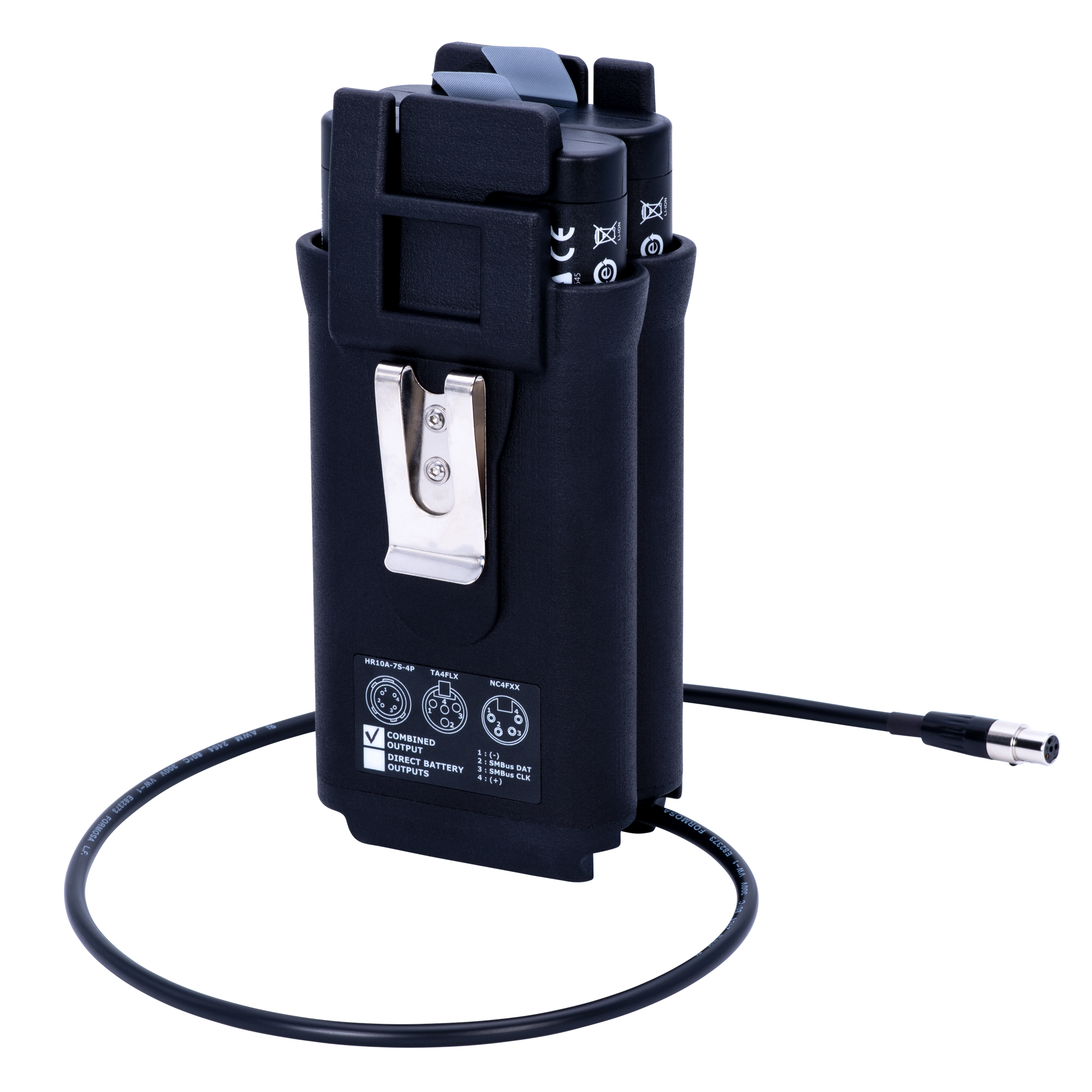

BH2-C-T-080 → Combined output with TA4F connector and 80 cm cable.

Specifications

• Weight (empty): 250 g

• Weight (with 2 batteries): 1150 g

• Dimensions: 71 × 90 × 193 mm

• Note: Batteries sold separately.

Why Choose the eSMART BH2?
Whether you're powering mixers, recorders, transmitters, or video equipment, the eSMART BH2 delivers professional-grade performance and adaptability. It’s the smart solution for managing multiple batteries with ease, stability, and confidence in any mobile or stationary production environment.
