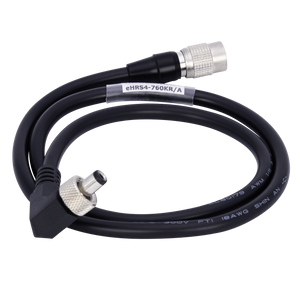

This professional-grade power cable features a Hirose 4-pin male connector on one end and a Switchcraft DC connector on the other, tailored to match a wide range of broadcast and audio equipment. Built with our rugged 20AWG custom round PVC cable (Ø4.5mm), it delivers reliable power transmission while ensuring durability and flexibility in the field.
Connector A: Hirose 4-pin male (HR10A-7P-4P)
Connector B: Switchcraft DC power plug (10 models available – see below)
Cable spec: 20AWG, 4.5mm O.D, round PVC, high durability
Length: 60 cm standard (custom lengths available on request)
Assembly: Hand-assembled in France
| Model | Switchcraft Connector Details | Internal Diameter | Barrel Length | Locking |
|---|---|---|---|---|

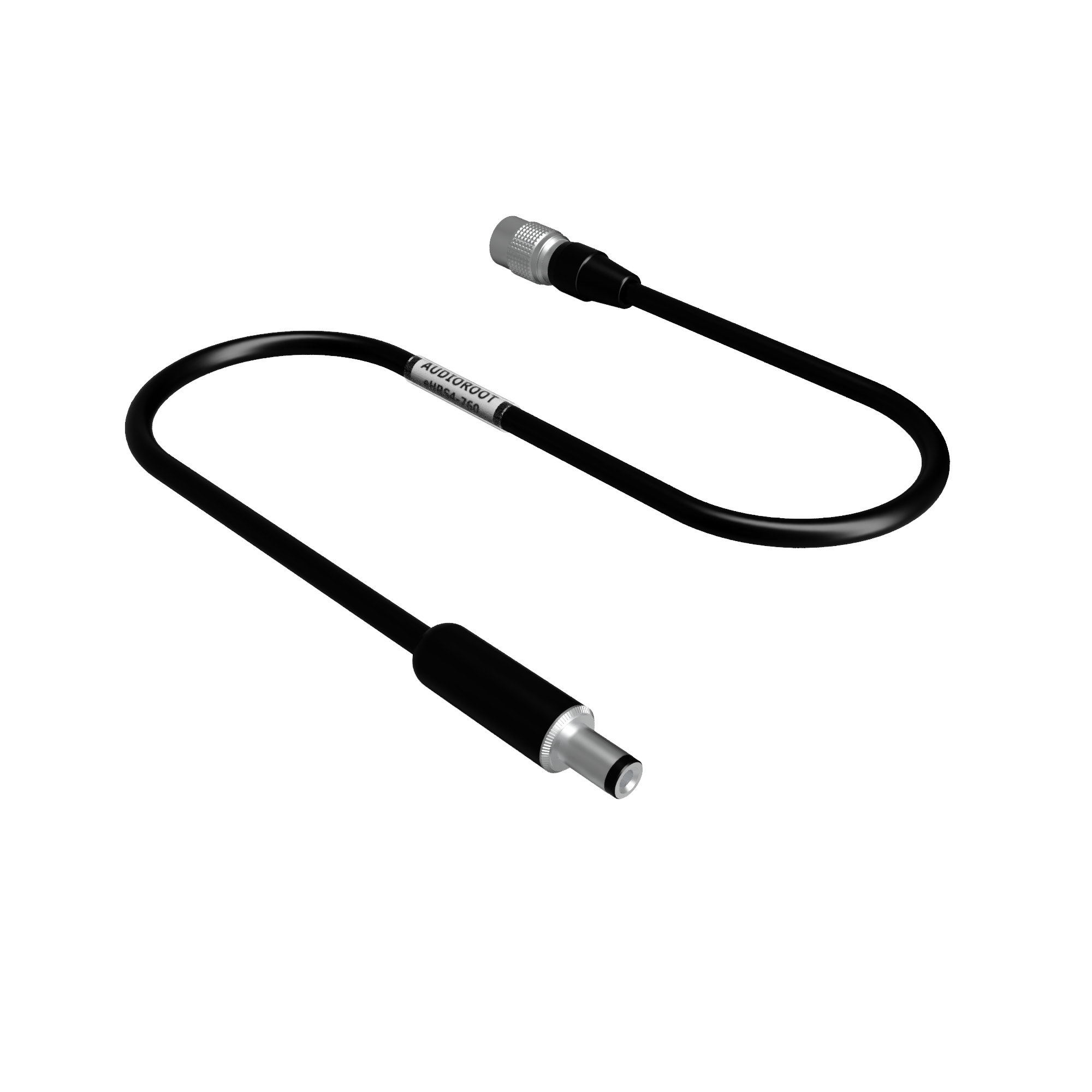

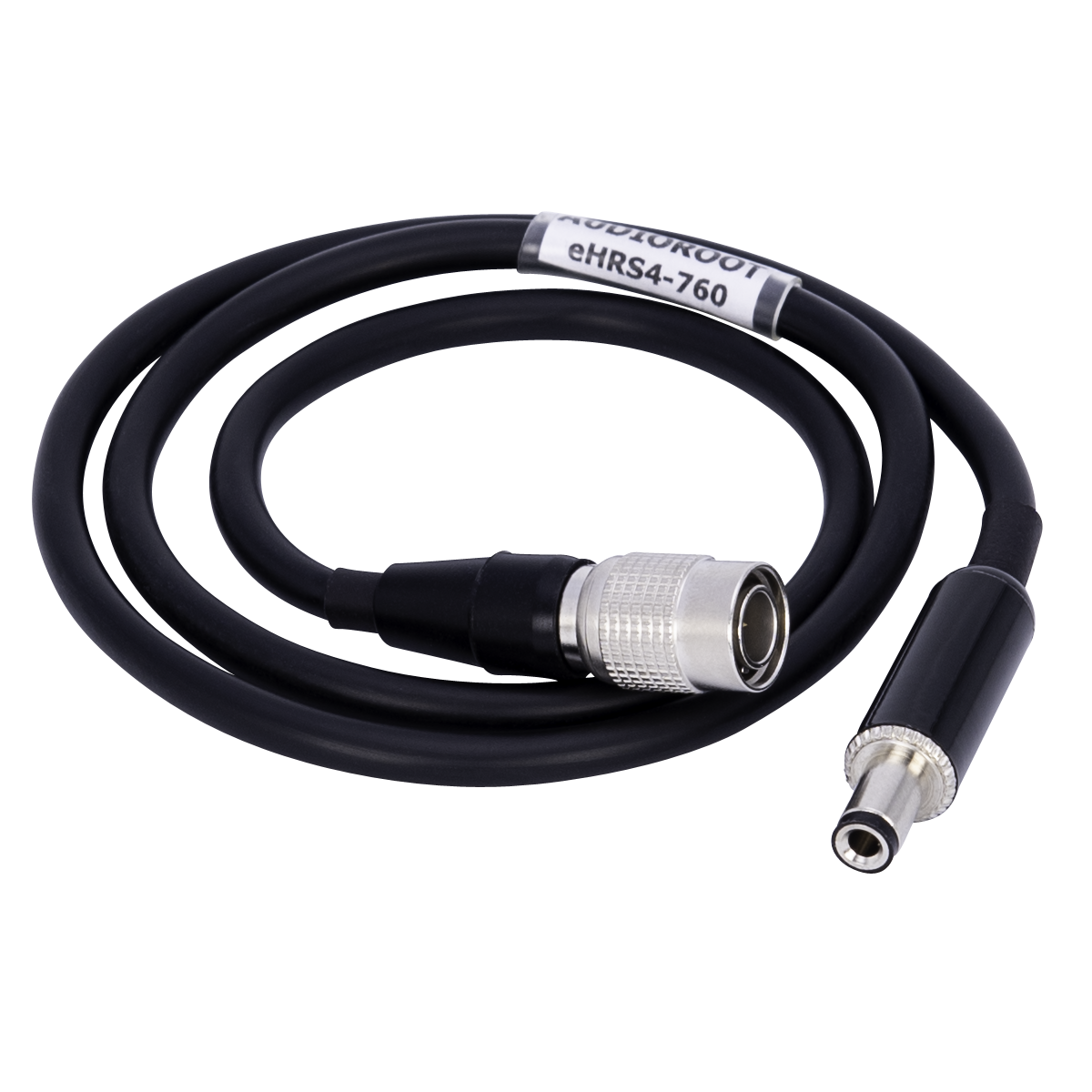

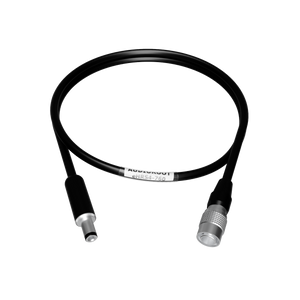

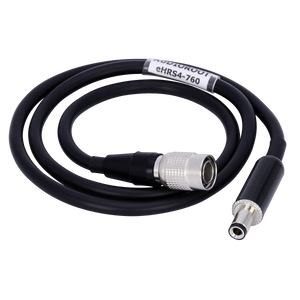

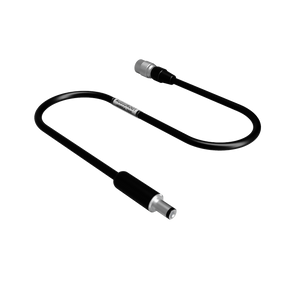

| eHRS4-760 | Switchcraft 760 | 2.5 mm | Short | No |

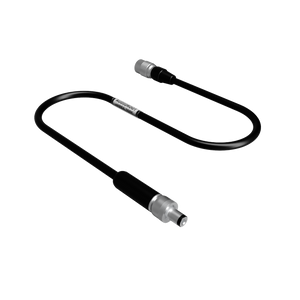

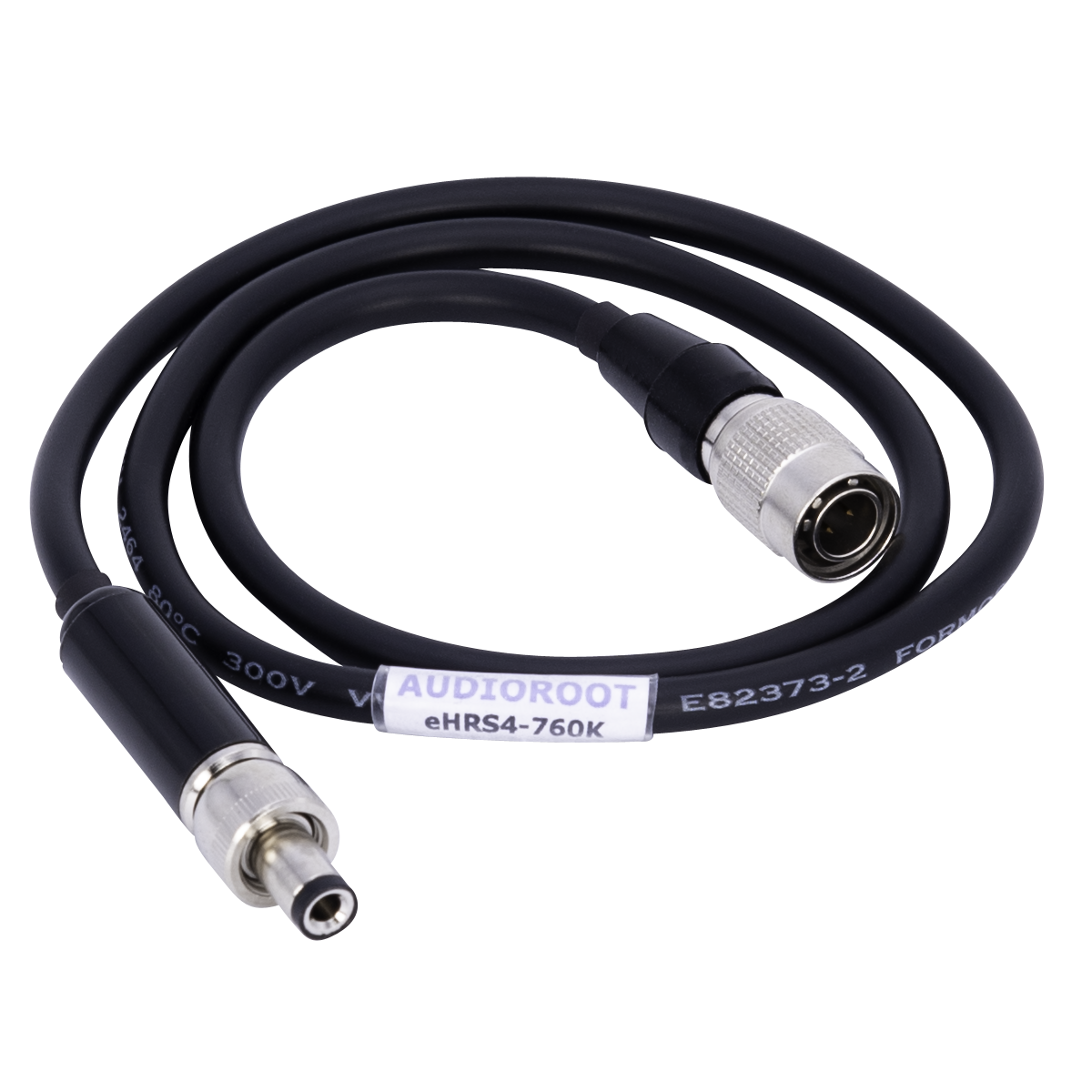

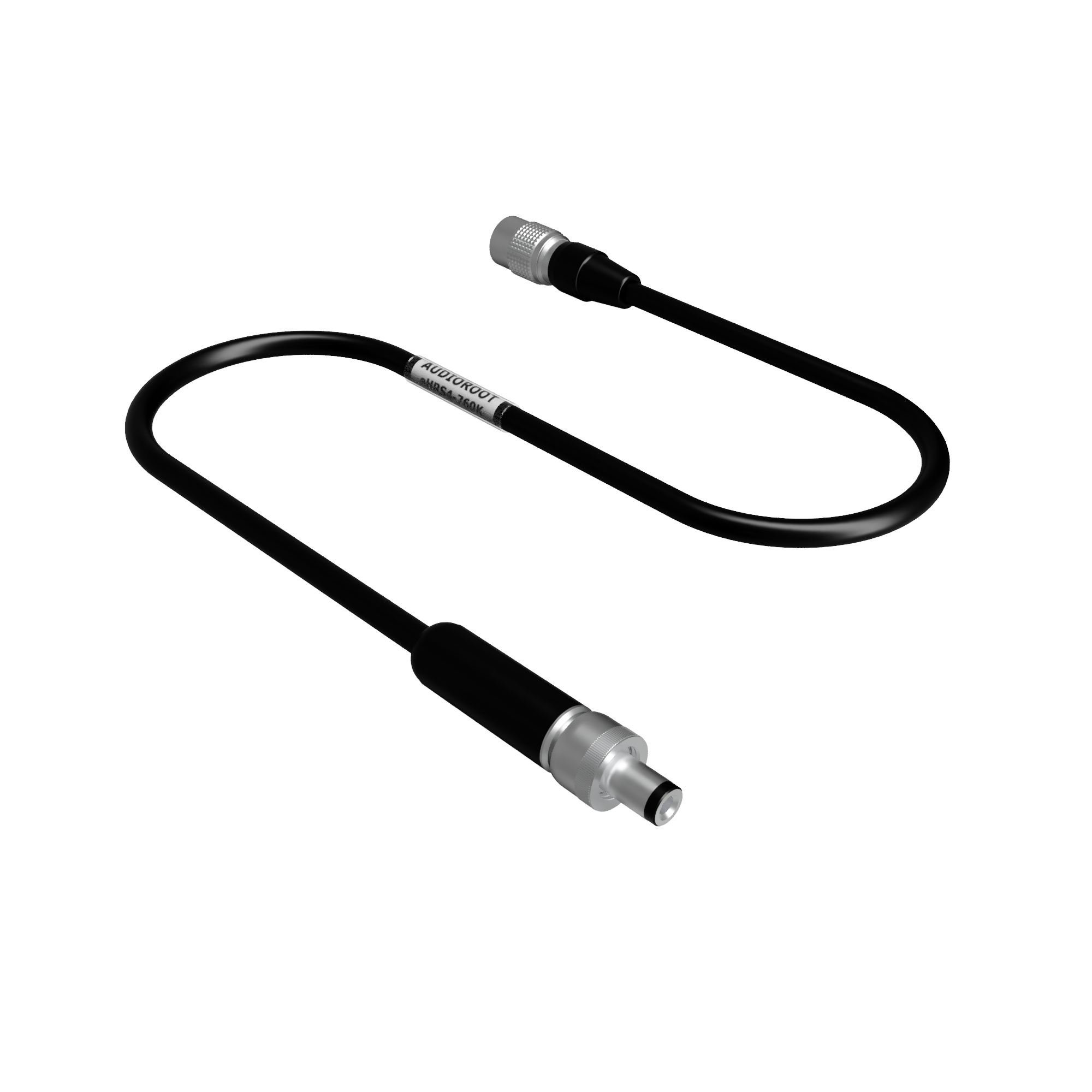

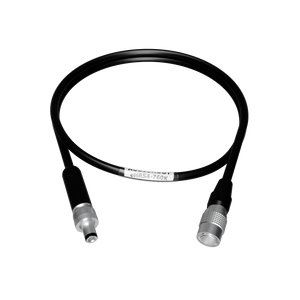

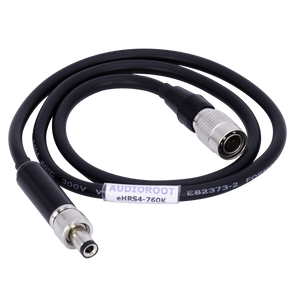

| eHRS4-760K | Switchcraft 760K | 2.5 mm | Short | Yes |

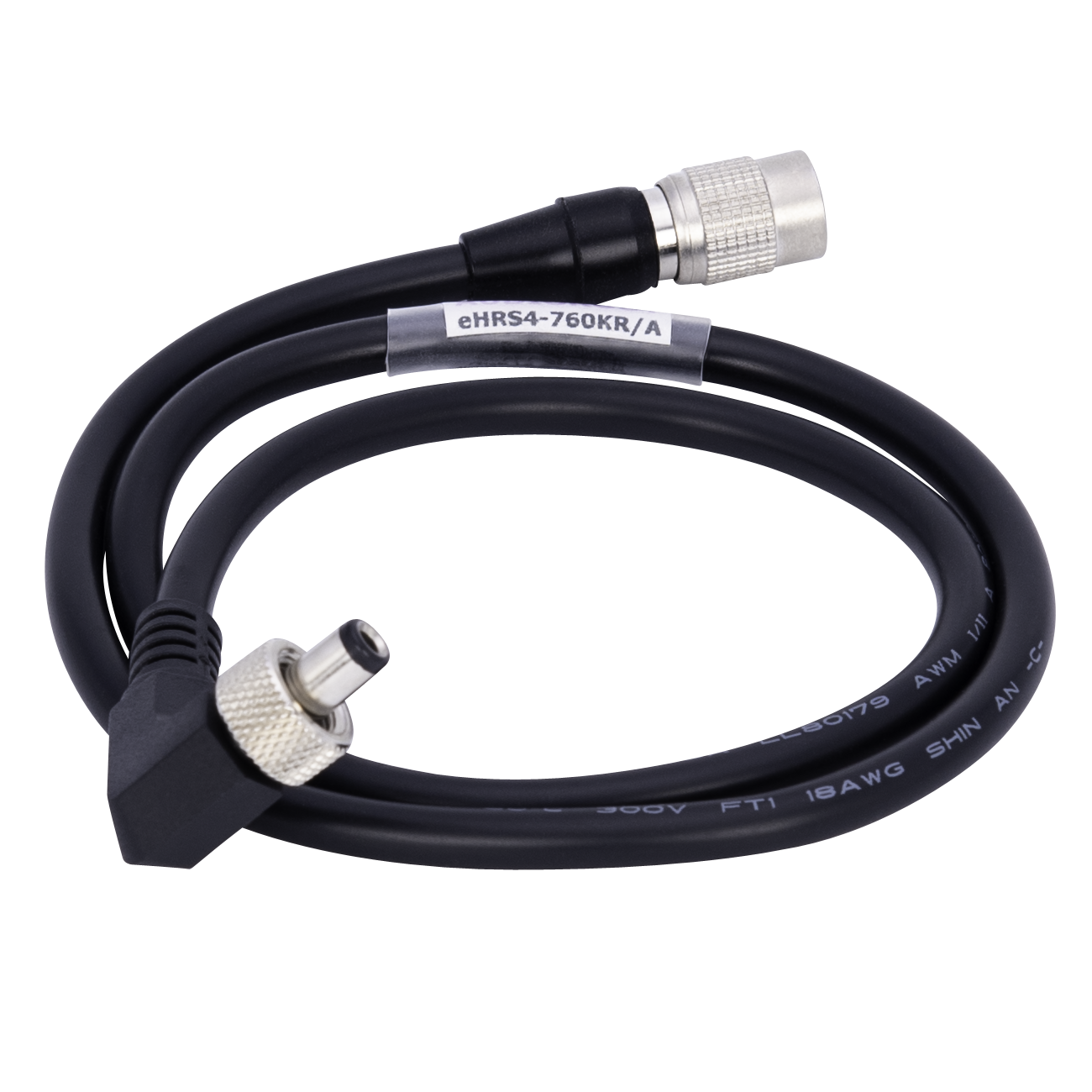

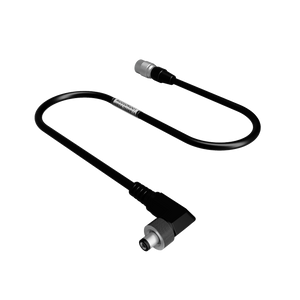

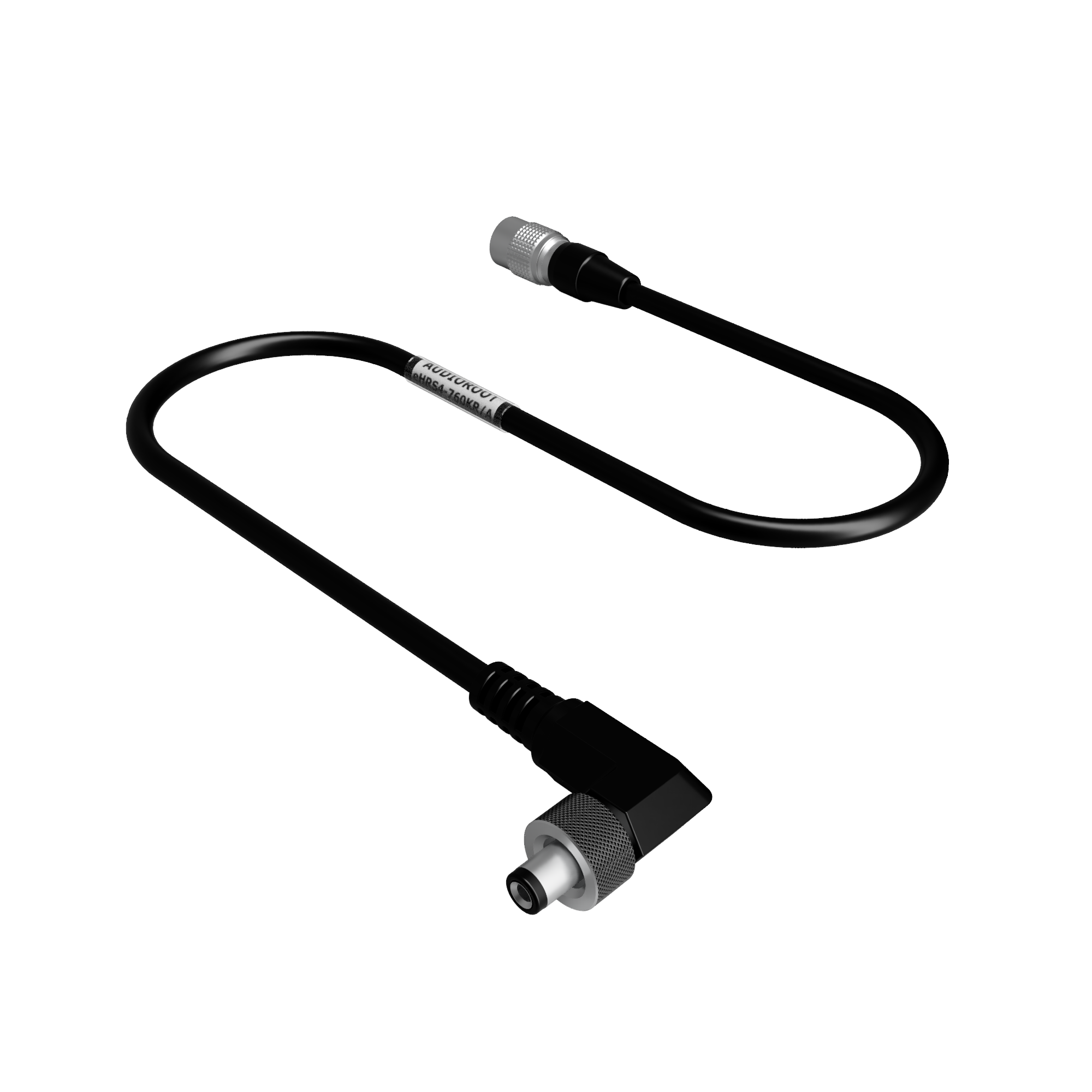

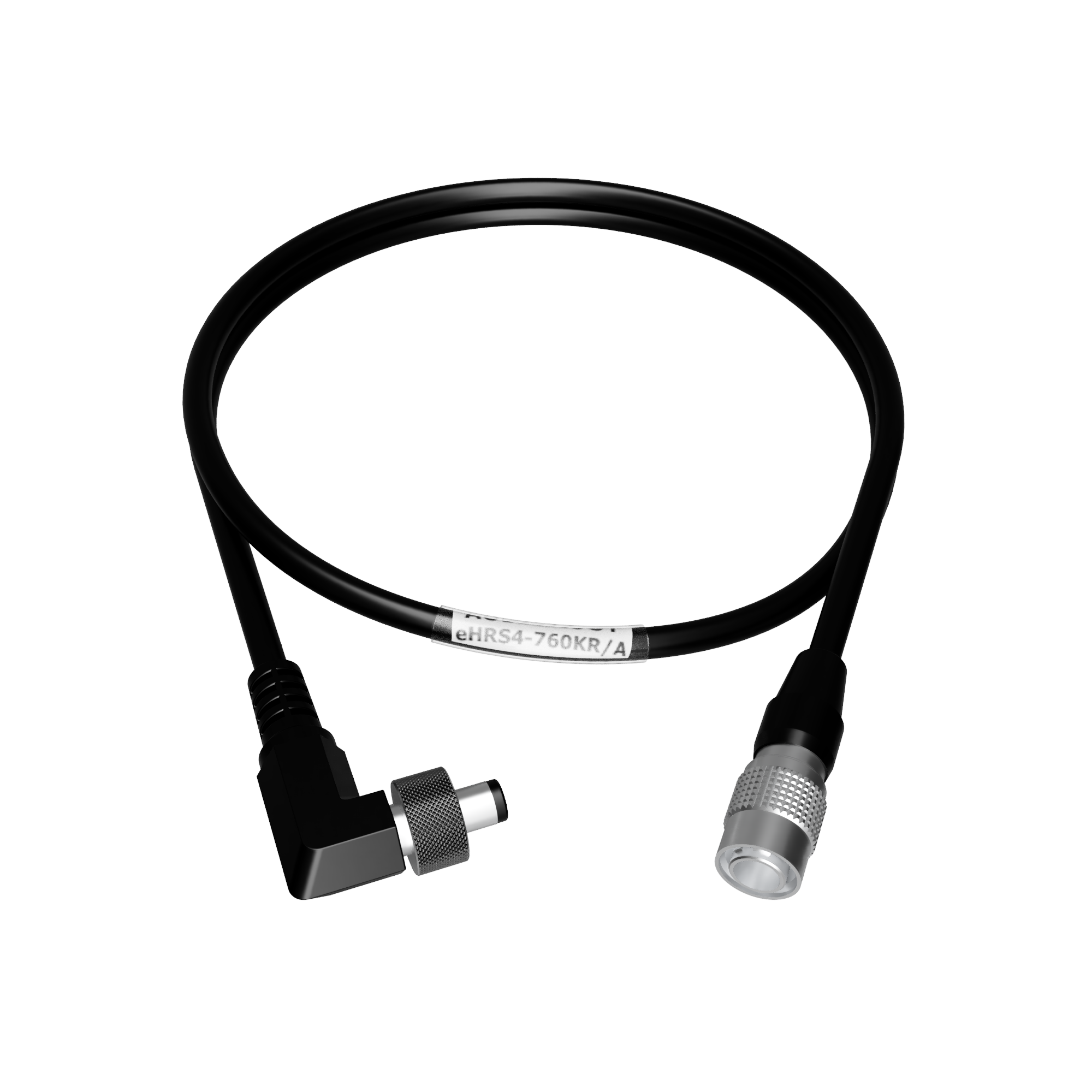

| eHRS4-760KR/A | Switchcraft 760KR/A | 2.5 mm | Short | Yes |

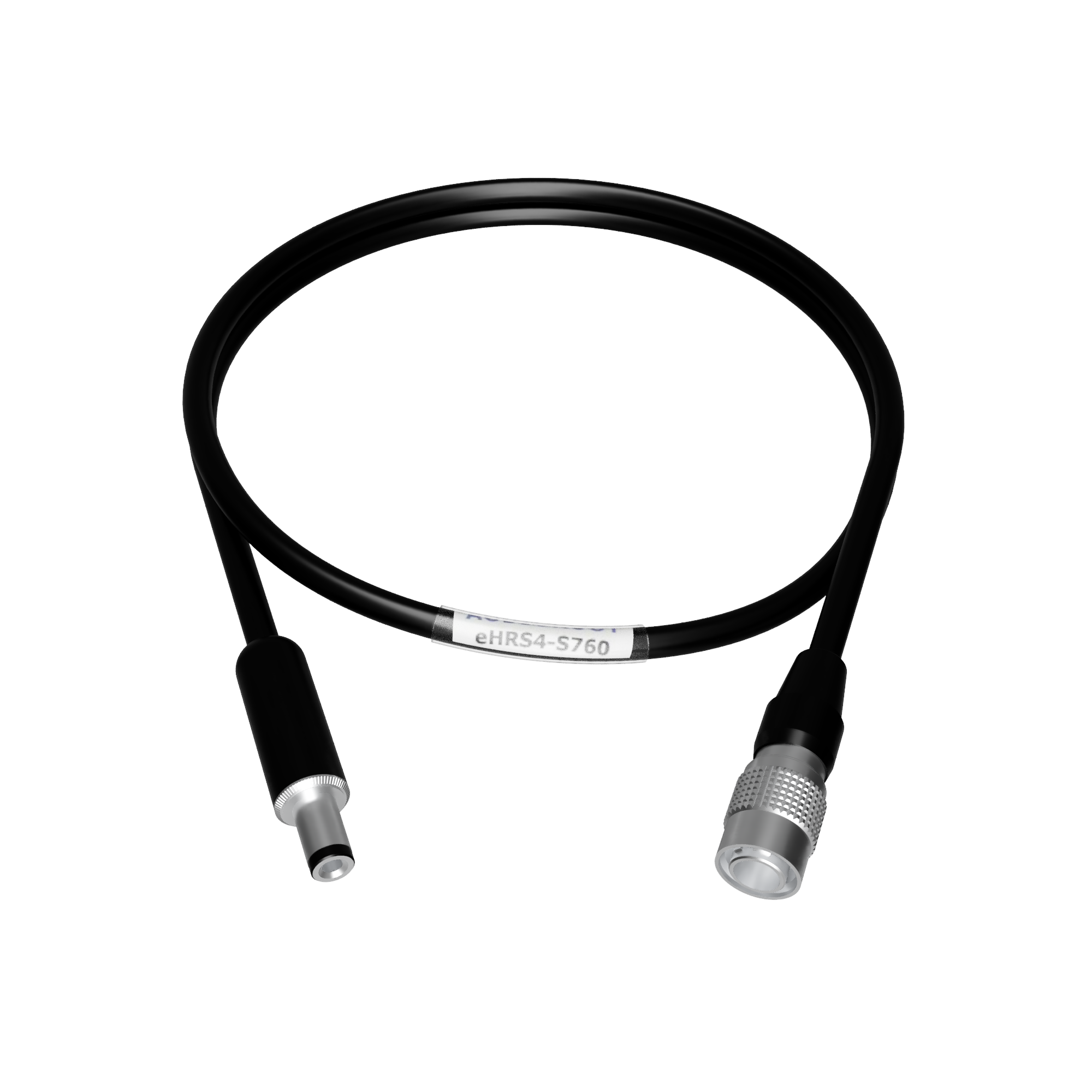

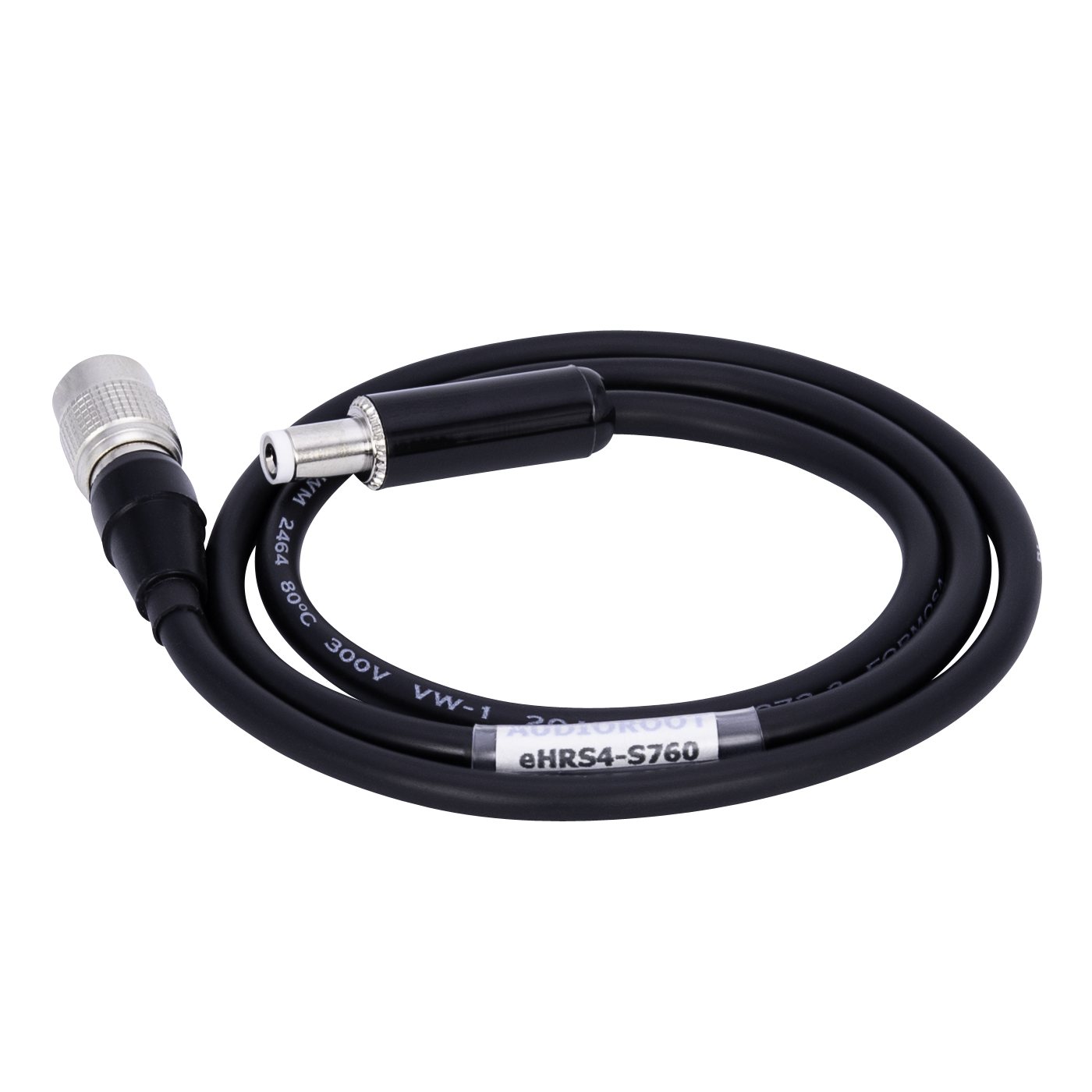

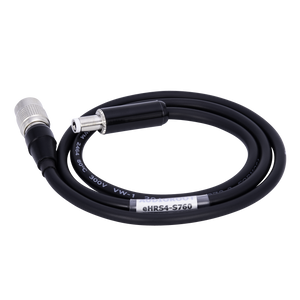

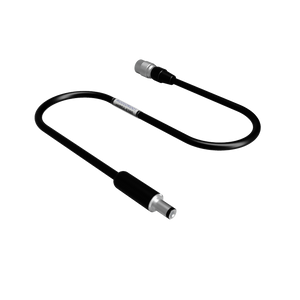

| eHRS4-S760 | Switchcraft S760 | 2.1 mm | Short | No |

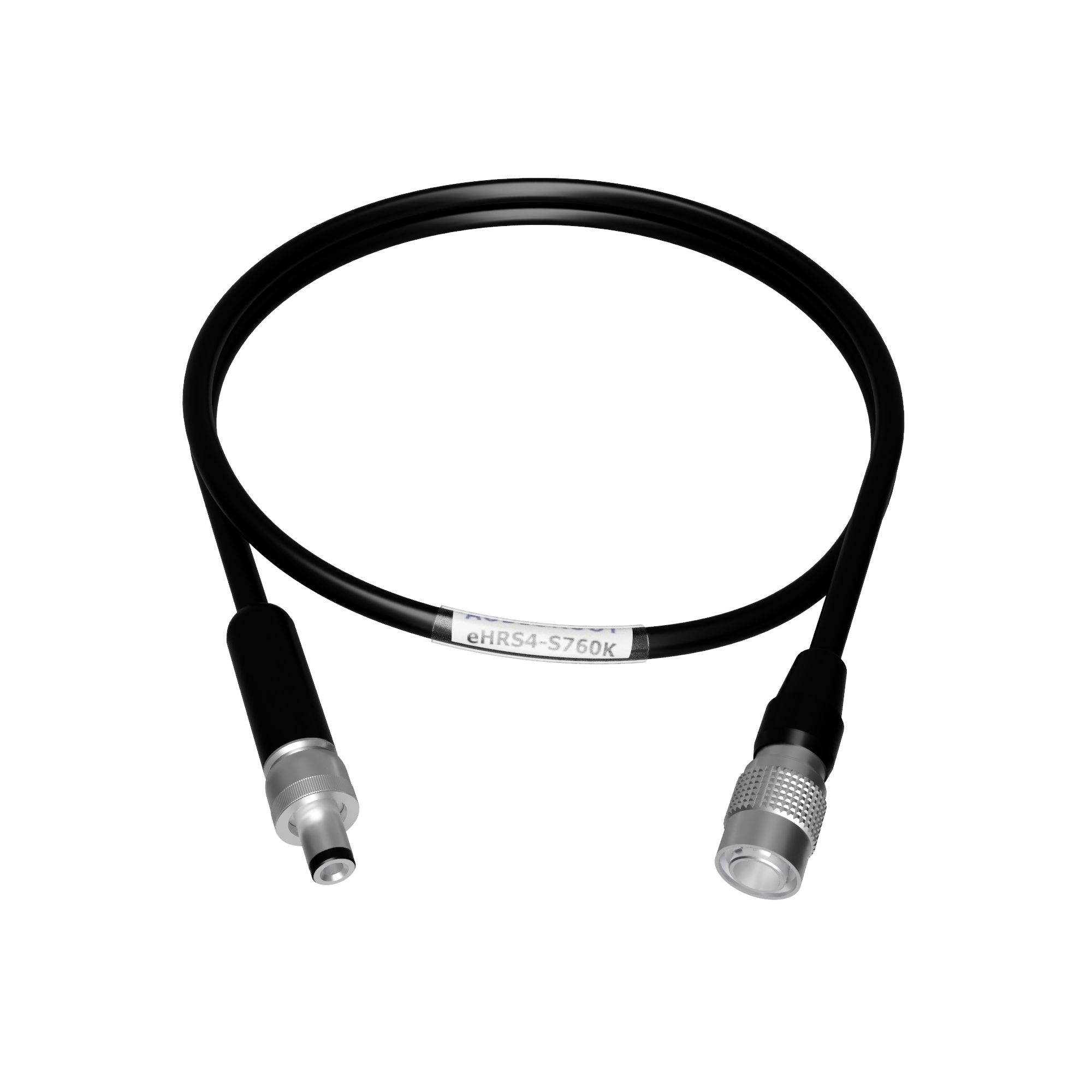

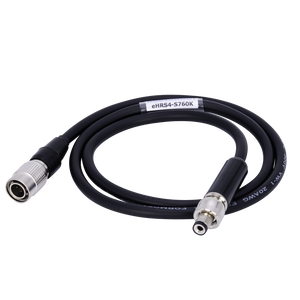

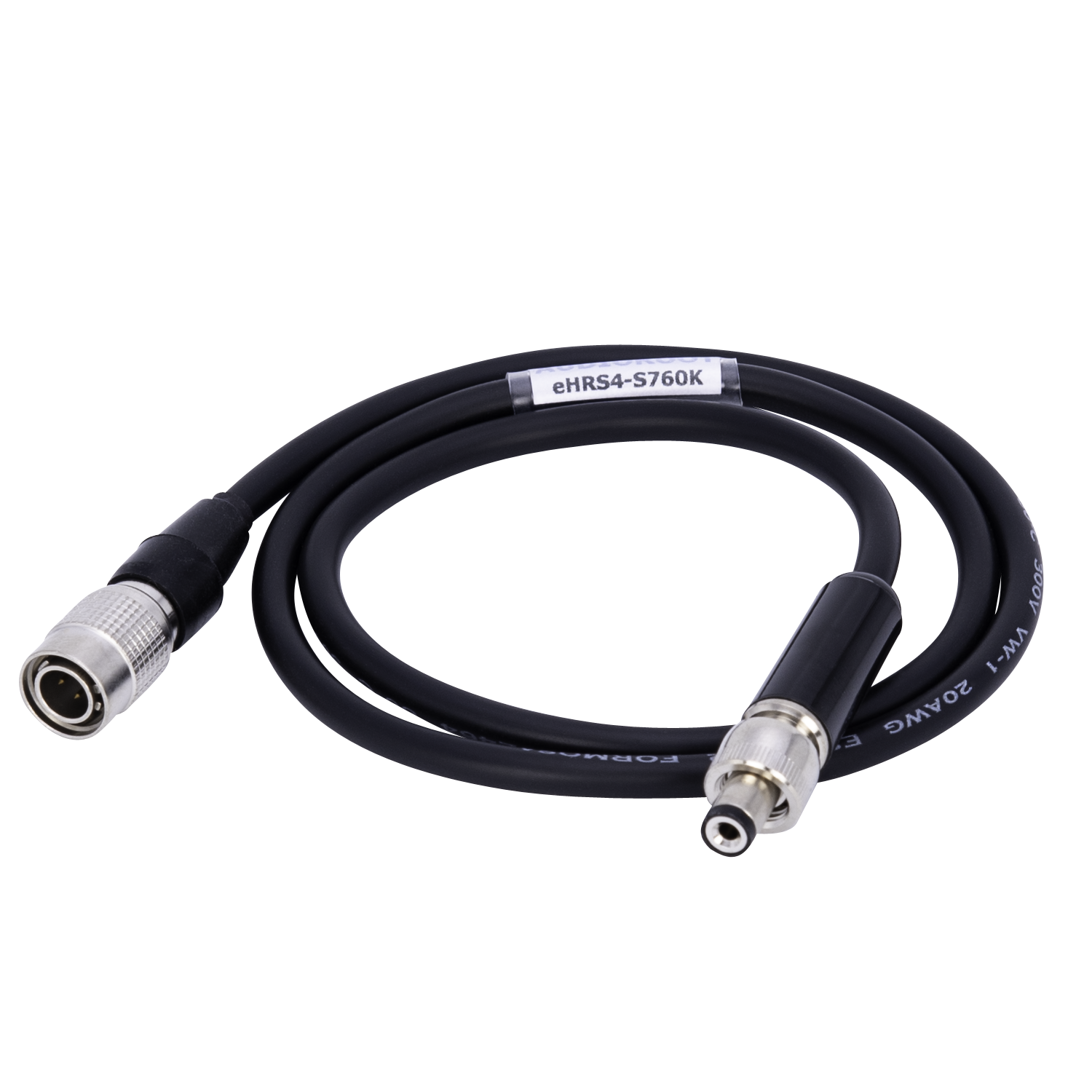

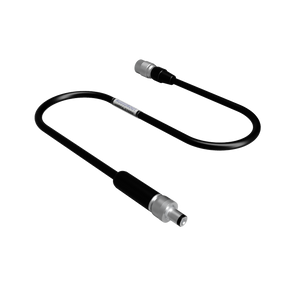

| eHRS4-S760K | Switchcraft S760K | 2.1 mm | Short | Yes |

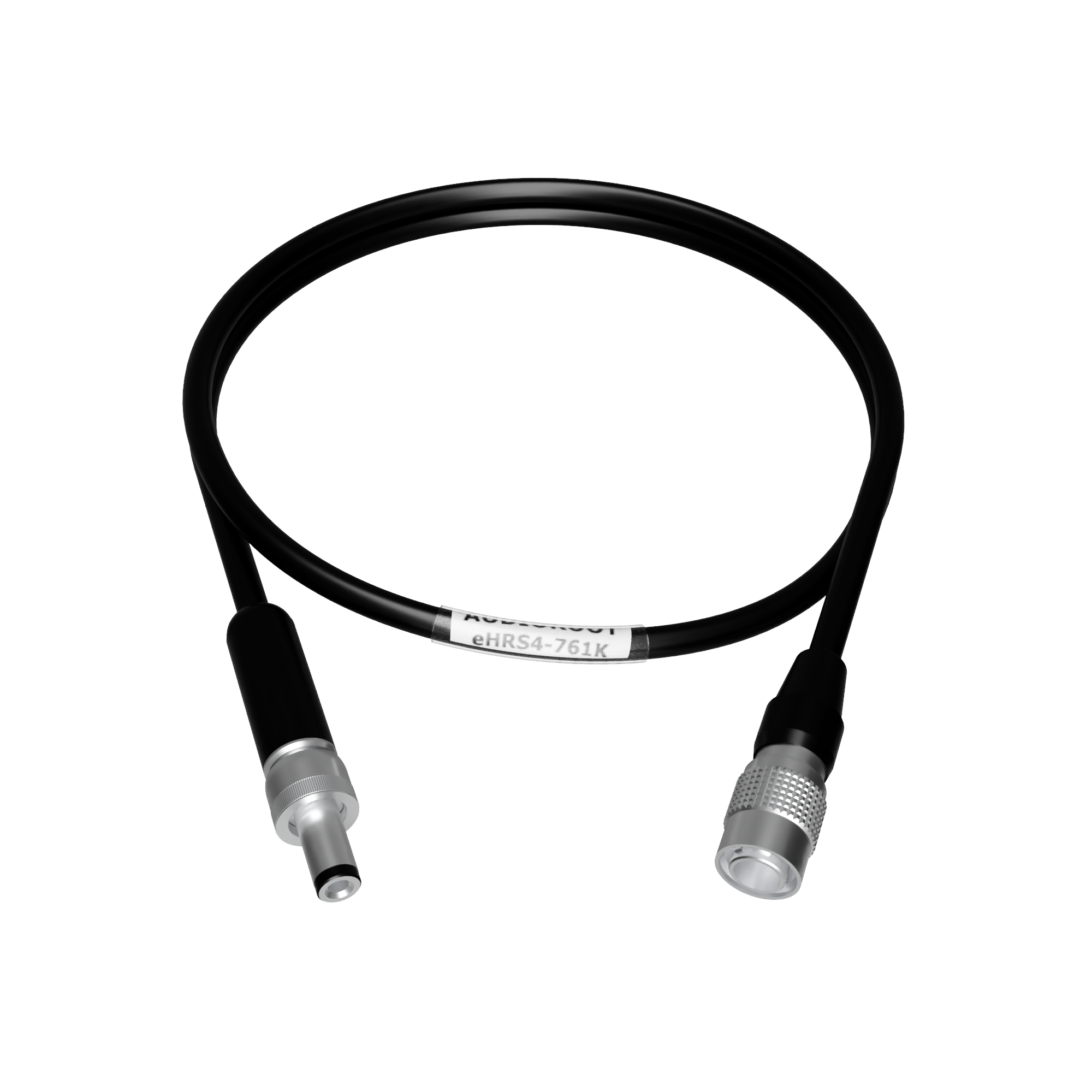

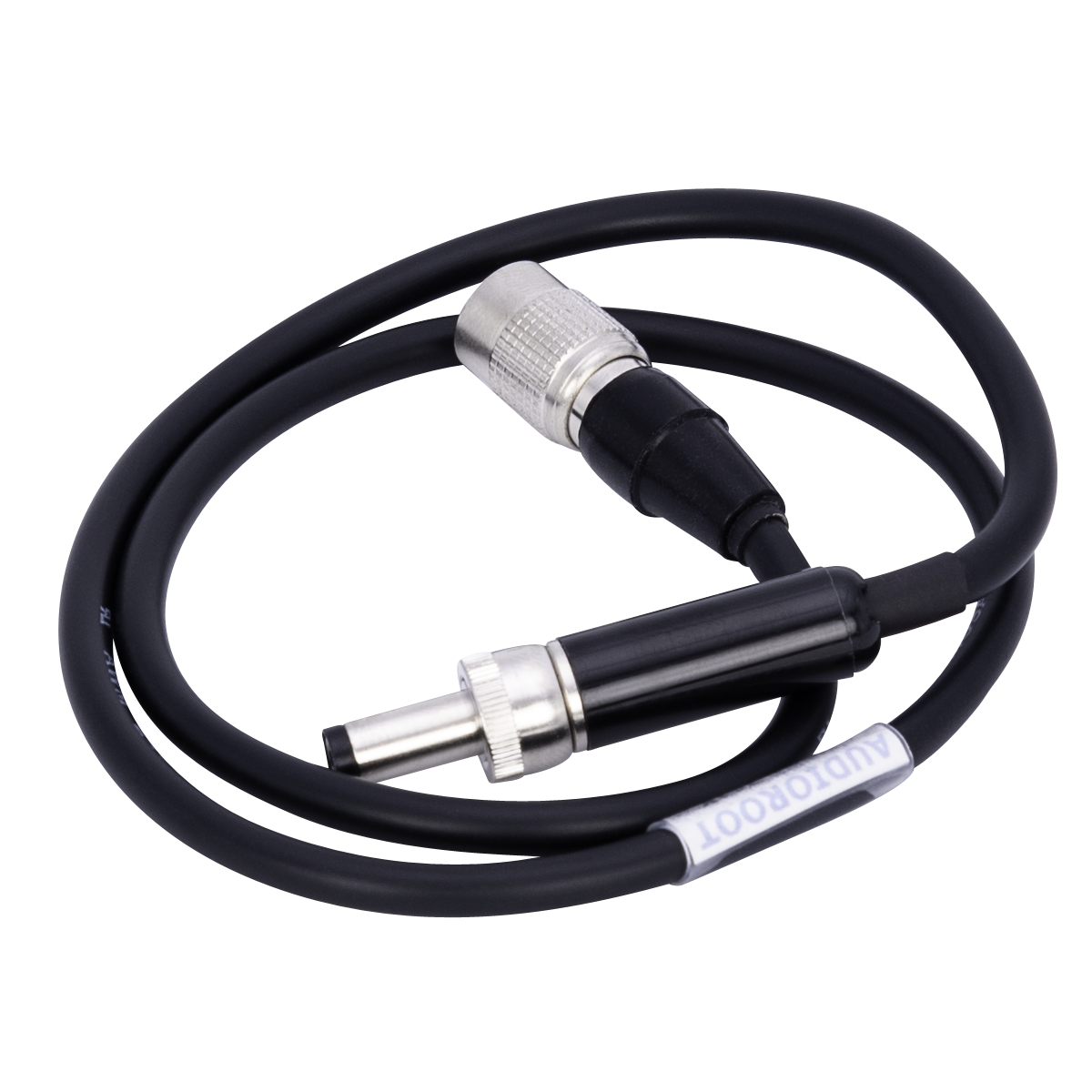

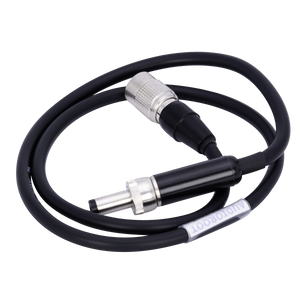

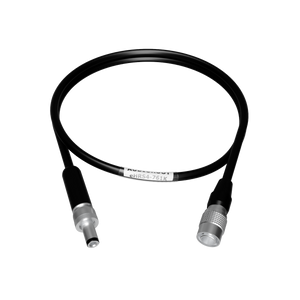

| eHRS4-761K | Switchcraft 761K | 2.5 mm | Long | Yes |

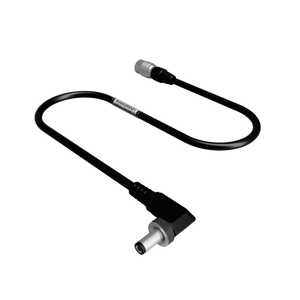

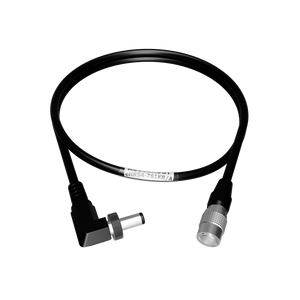

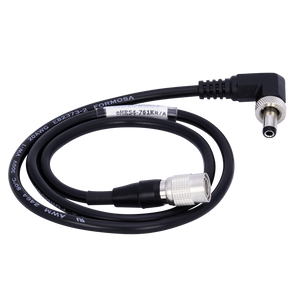

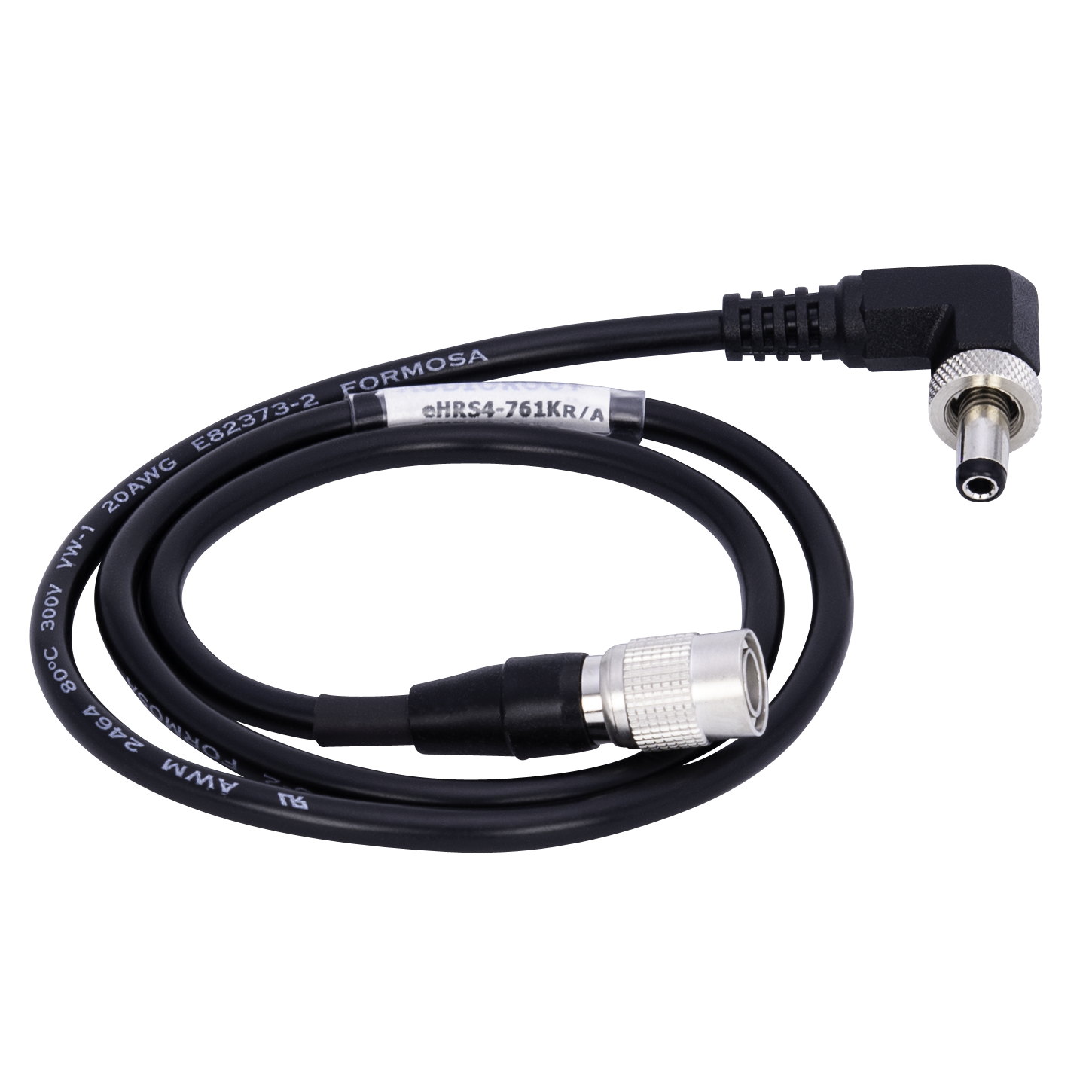

| eHRS4-761KR/A | Switchcraft 761KR/A | 2.5 mm | Long | Yes |

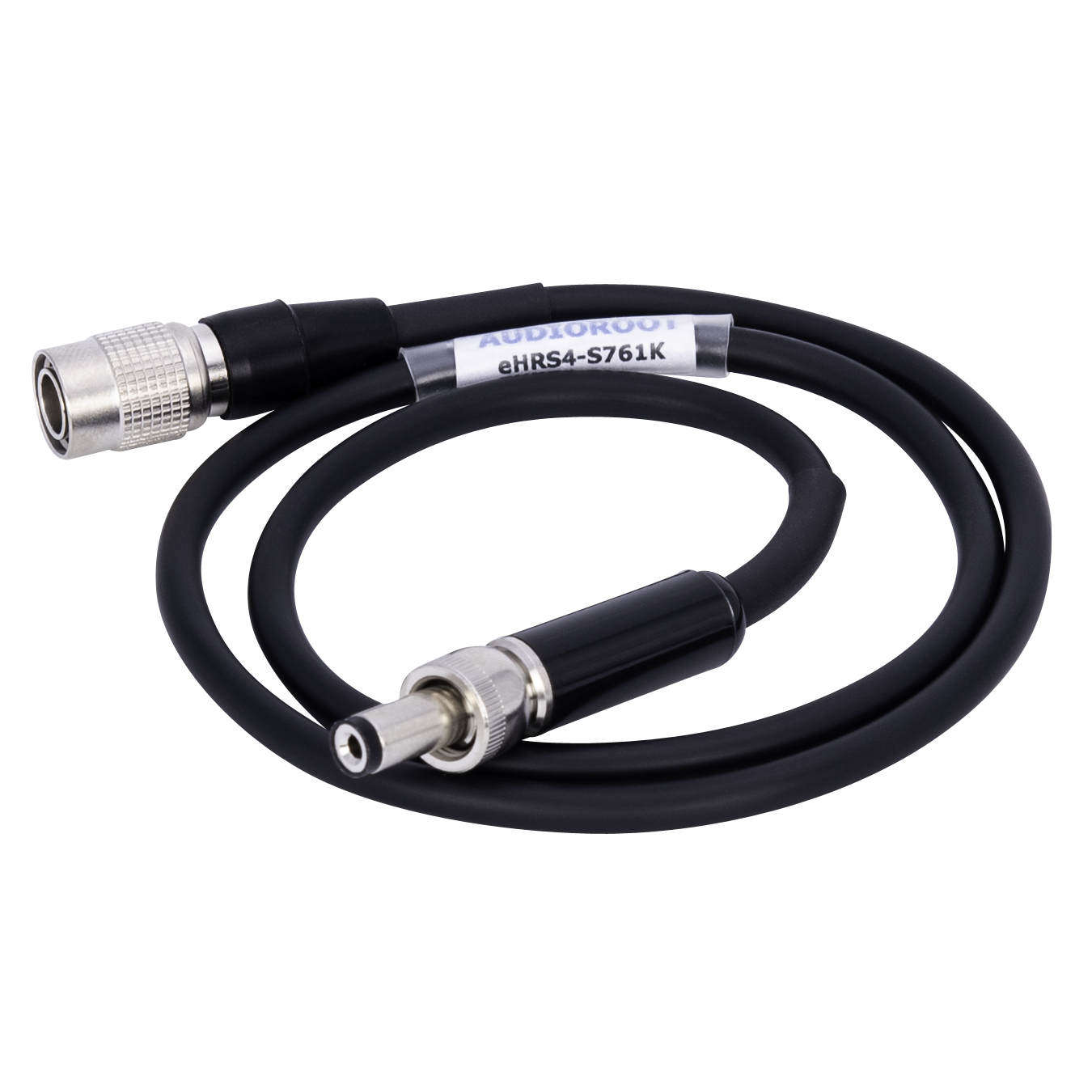

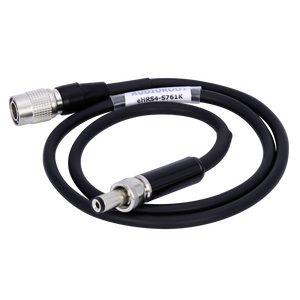

| eHRS4-S761K | Switchcraft S761K | 2.1 mm | Long | Yes |

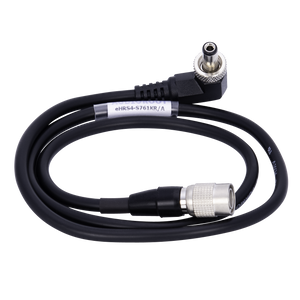

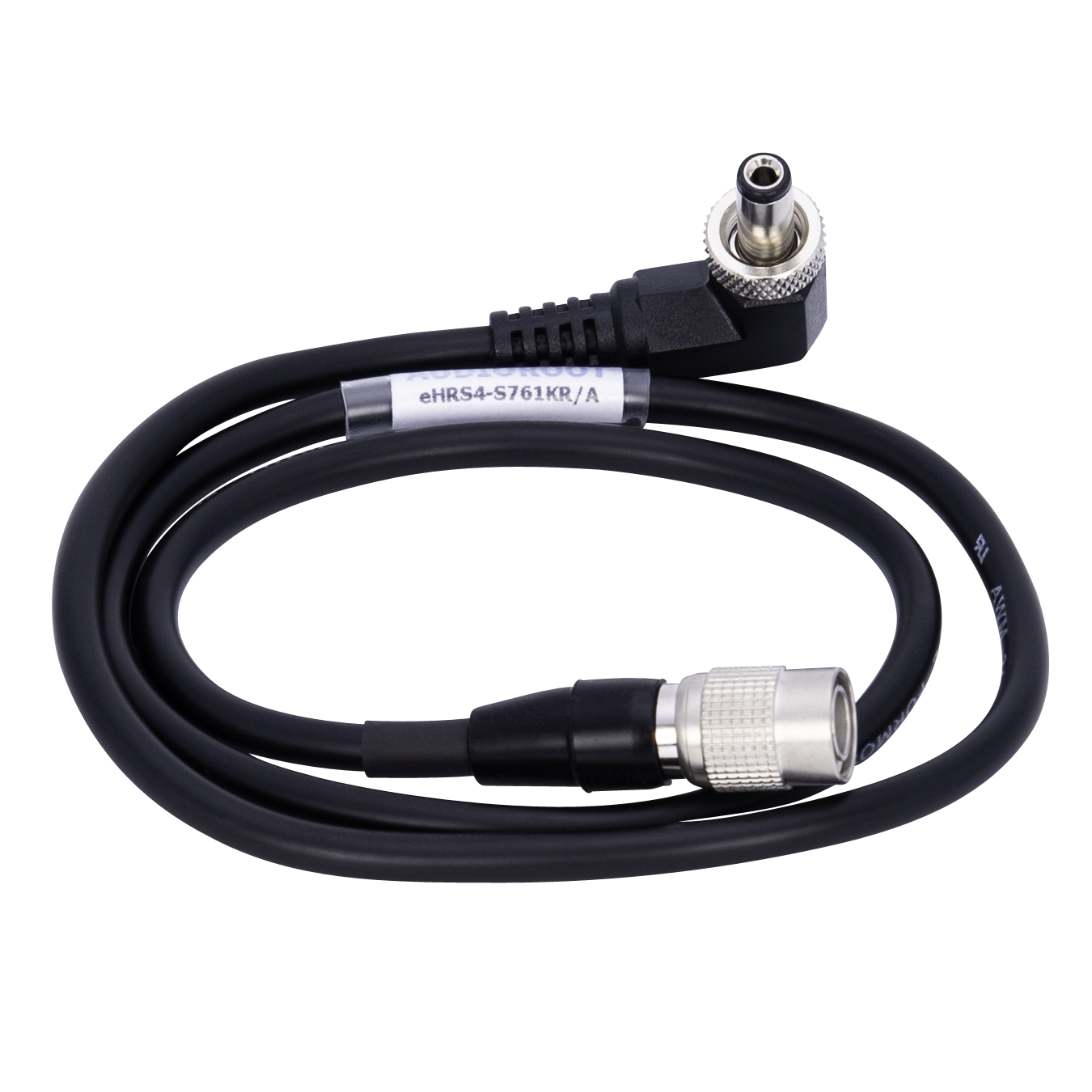

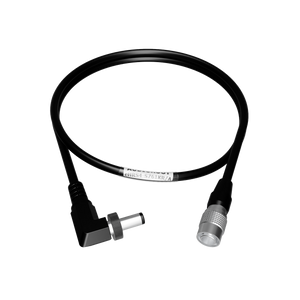

| eHRS4-S761KR/A | Switchcraft S761KR/A | 2.1 mm | Long | Yes |
