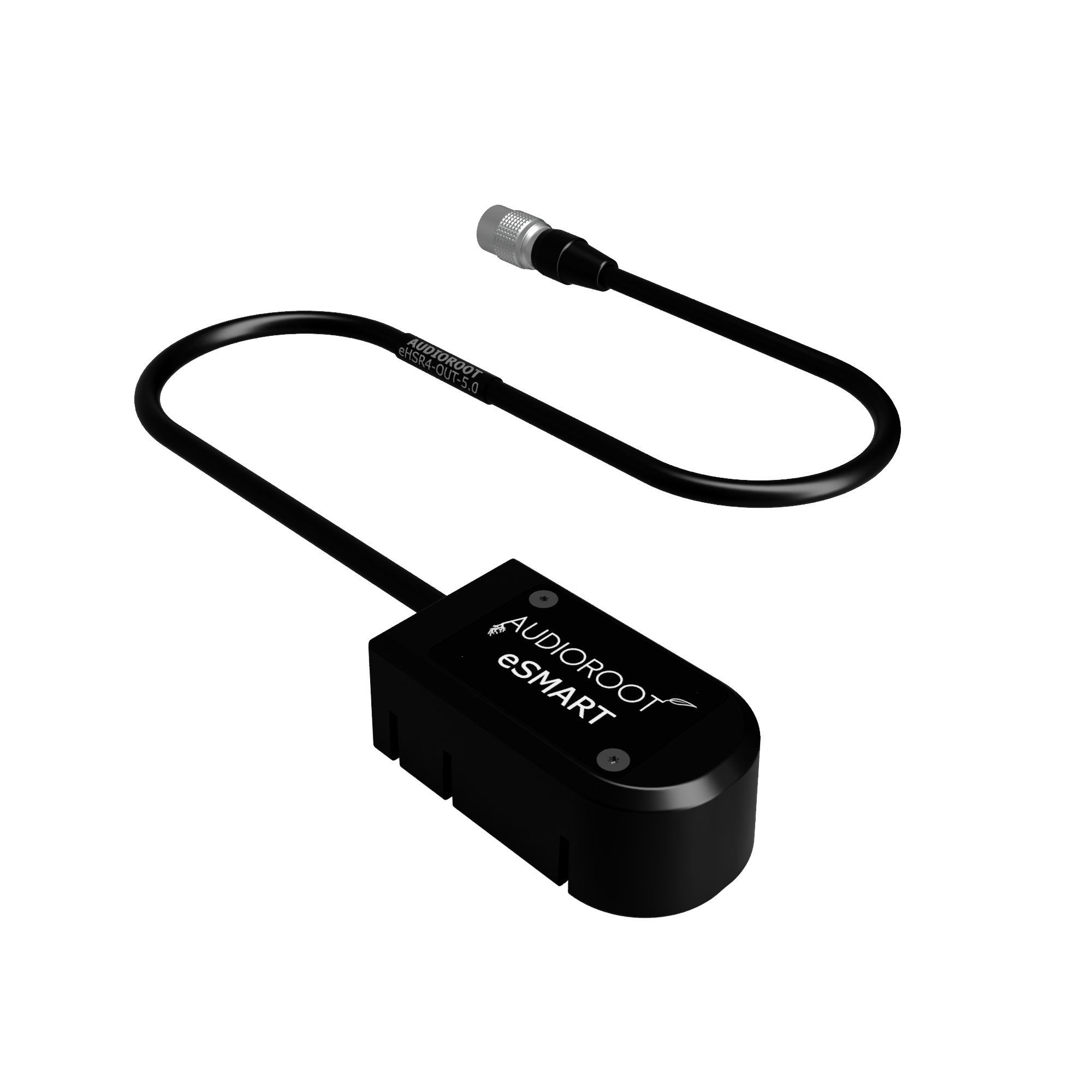

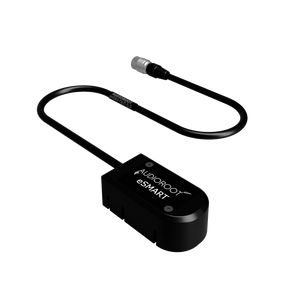

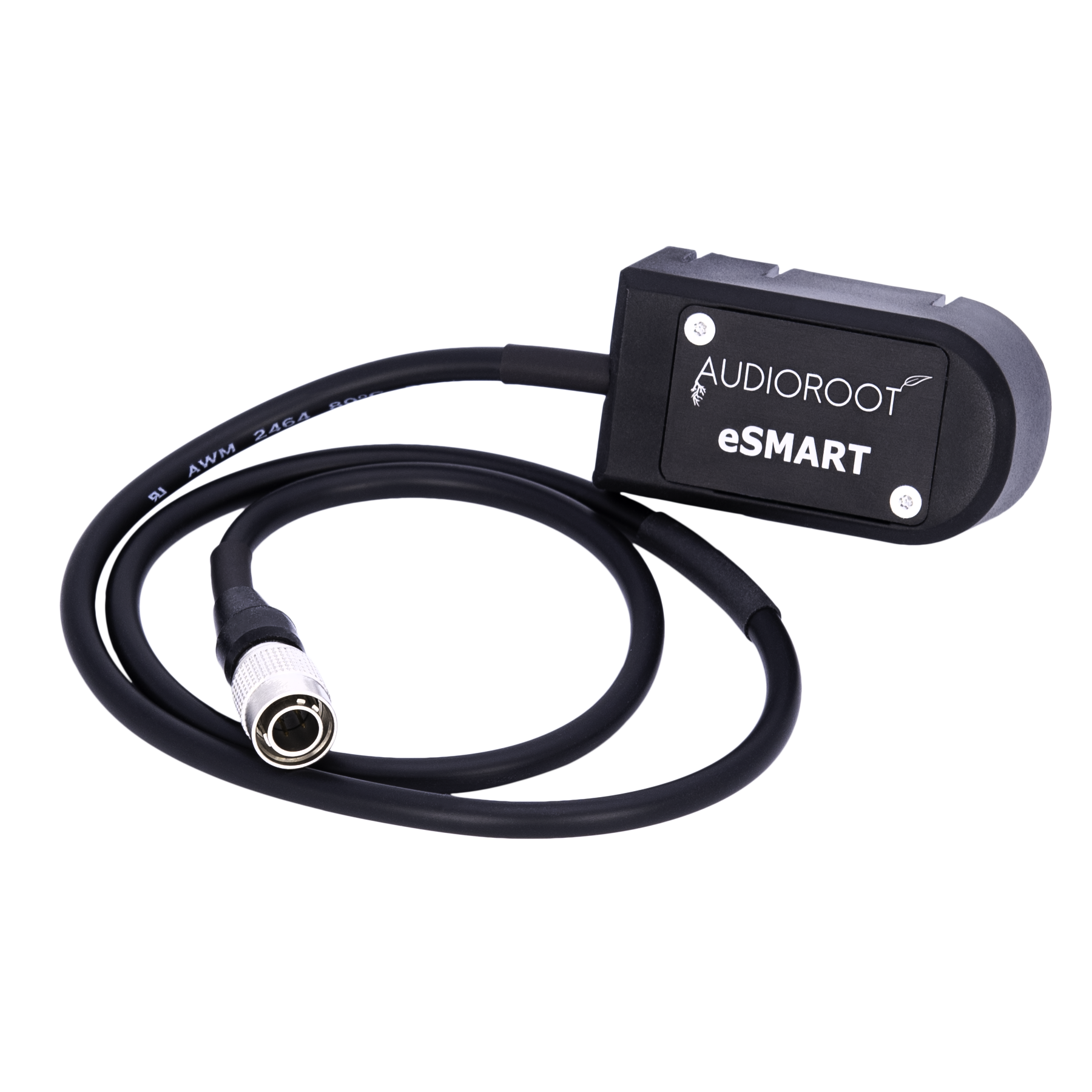

eHRS4-OUT-5.0 - current limited battery output cable

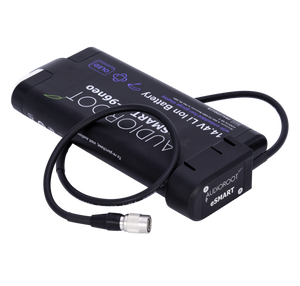

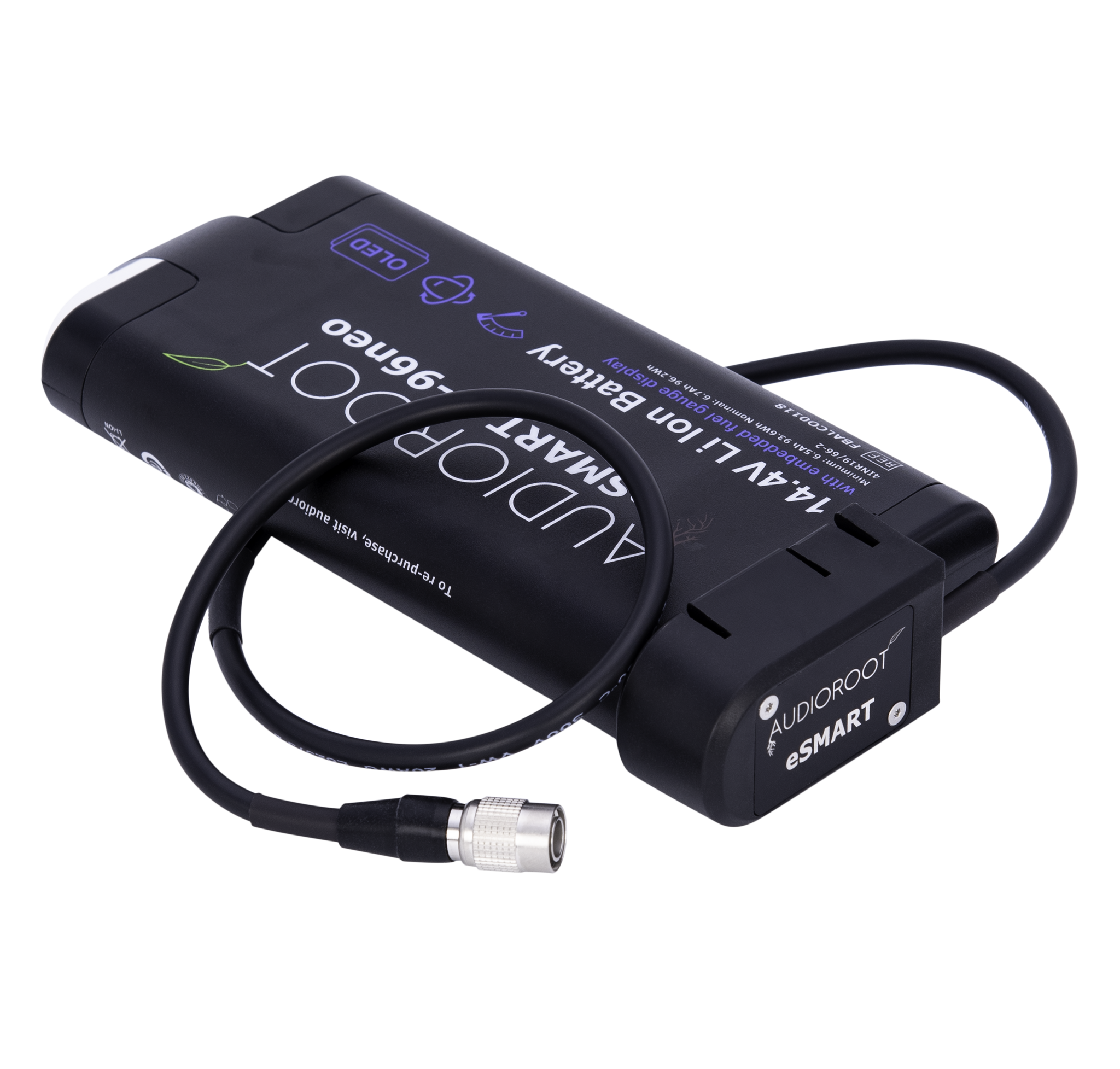

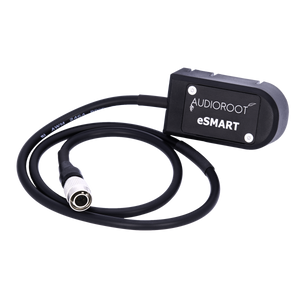

The eHRS4-OUT-5.0 is a rugged output cable that connects directly to an Audioroot smart battery using a secure battery cup, and provides power through a Hirose 4-pin male connector. It integrates a 5.0A active current limiting circuit, making it ideal for safely powering modern devices and protecting power distribution setups.

⚡ Inrush Current Control
Some devices can cause high inrush currents when powered on, which can trigger battery protection shutdowns—especially in compact models. This cable limits current peaks to 5.0A, eliminating startup trips and maintaining a stable power feed.

🛡️ Short-Circuit Protection
In the event of a short after the cable, the active limiter ensures that the battery remains protected and that other devices stay powered, making it a reliable safety component in complex power setups.

📡 Telemetry Option
Available in two variants:

• 📶 With telemetry: Passes SMBus data from the battery to compatible Audioroot power distribution systems

• 🔇 Without telemetry: Simplified version for analog-only or DIY configurations

🔧 Key Features:

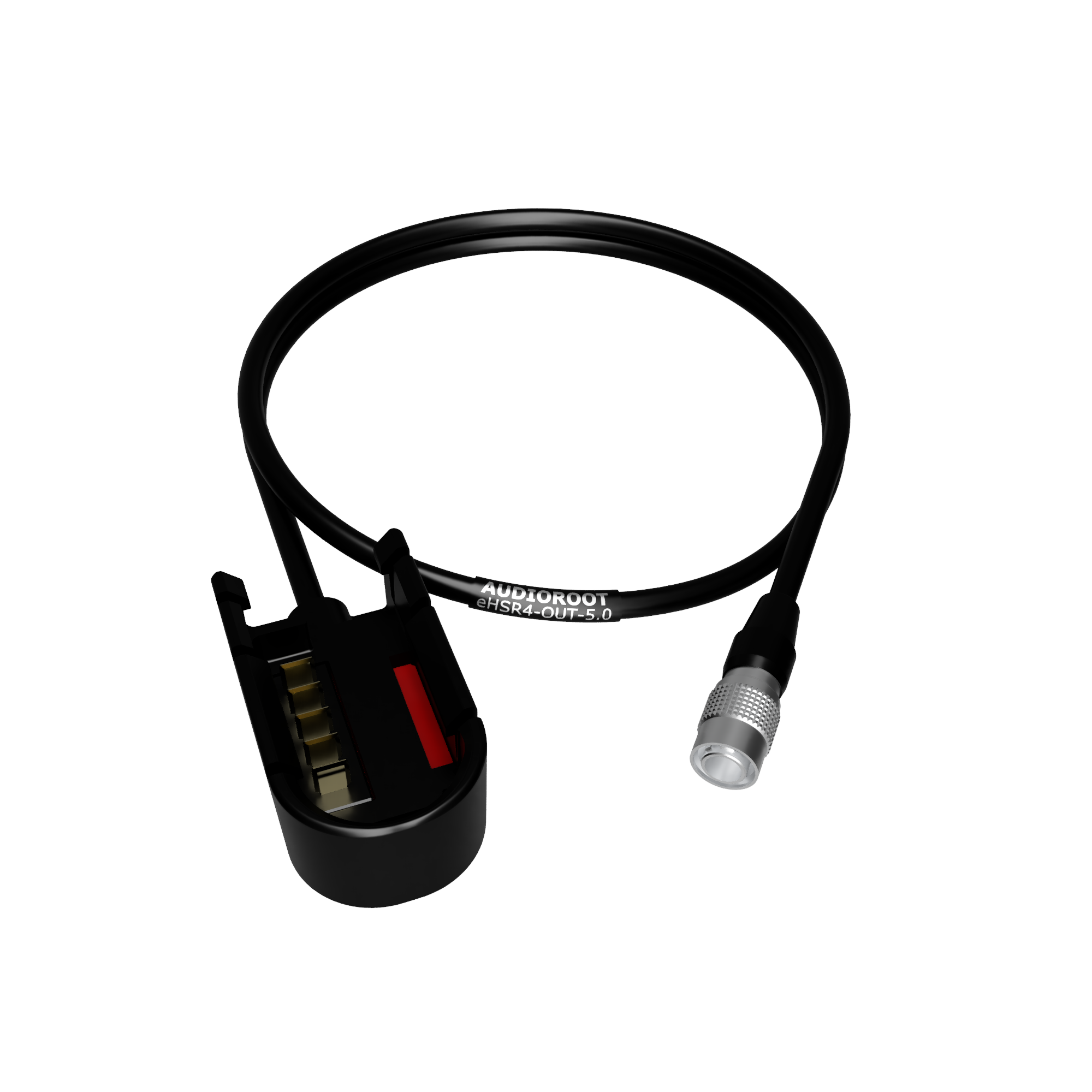

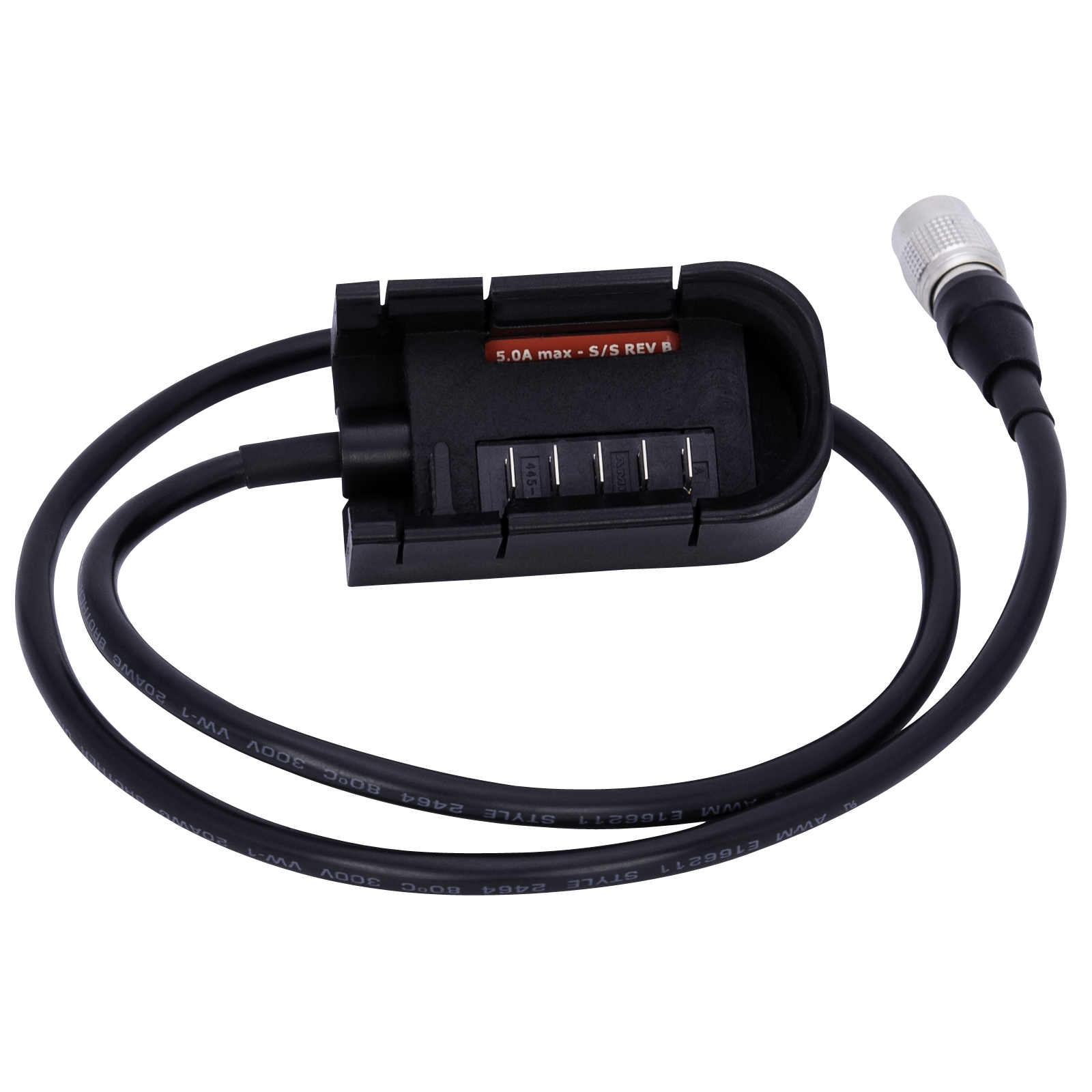

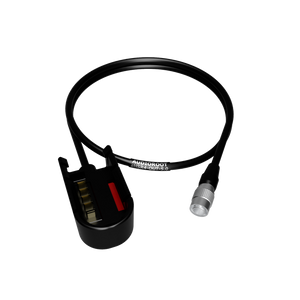

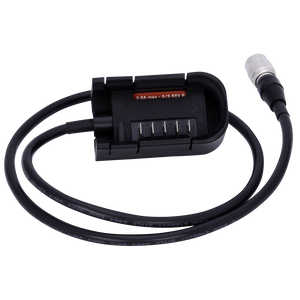

• 🔋 Input: Integrated battery cup for Audioroot smart batteries

• 🔌 Output: Hirose 4-pin male connector

• ⚡ Current Limiting: 5.0A active protection circuit

• 📏 Length: Approx. 60 cm

• 🔄 Cable Specs: w/o telemetry : 4.5mm O.D., 2 x 20 AWG , w/ telemetry : 5.5mm O.D., 2 x 18AWG + 2 x 24AWG

• 📡 Variants: With or without telemetry

• ✅ Use Cases:
  – Powering inrush-sensitive equipment
  – Preventing smart battery shutdowns
  – Protecting power systems from shorts
  – Professional audio, ENG, and custom builds
