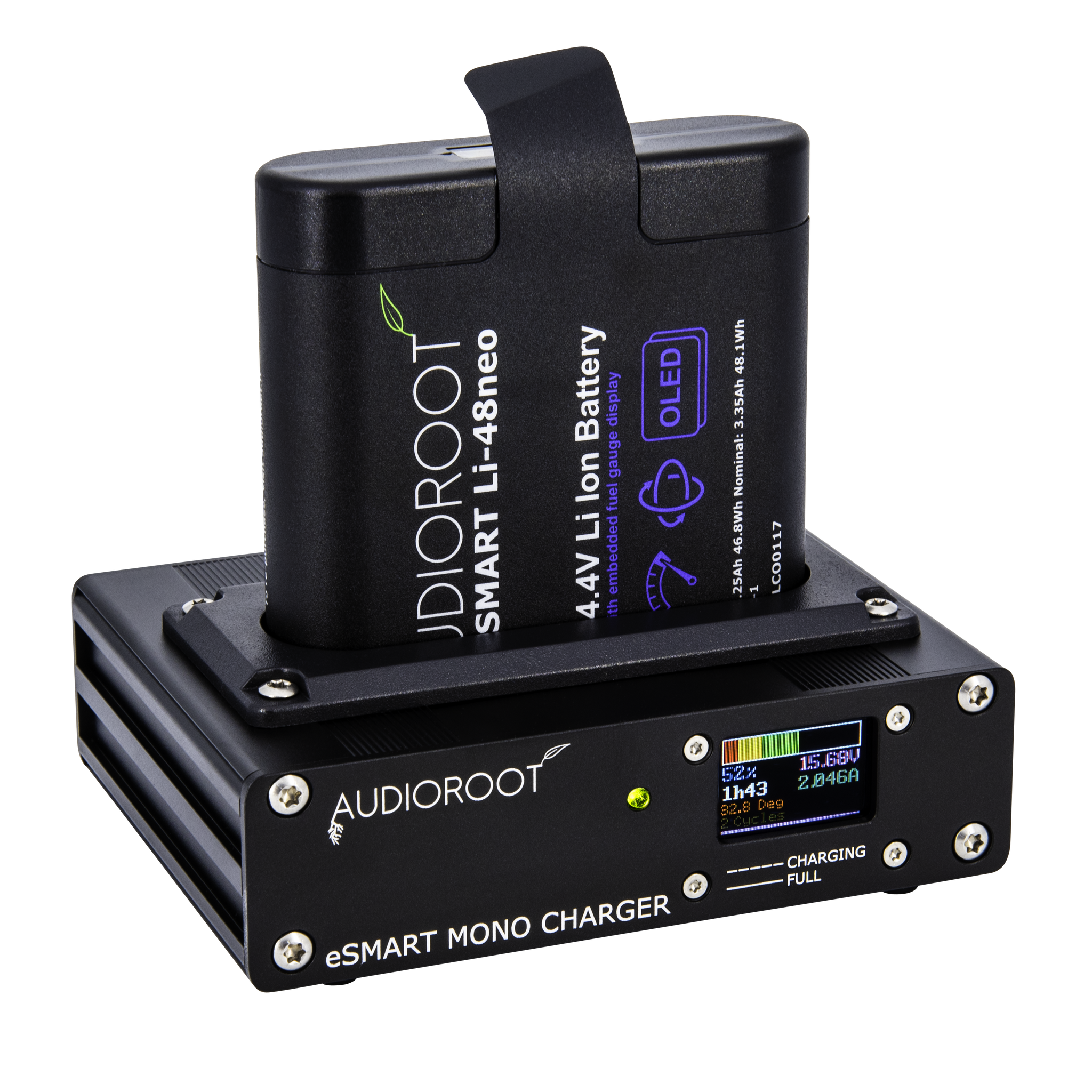

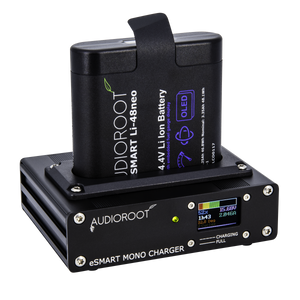

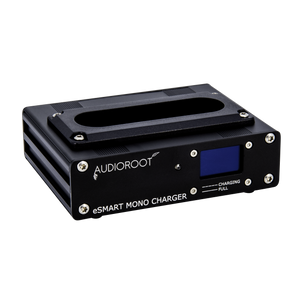

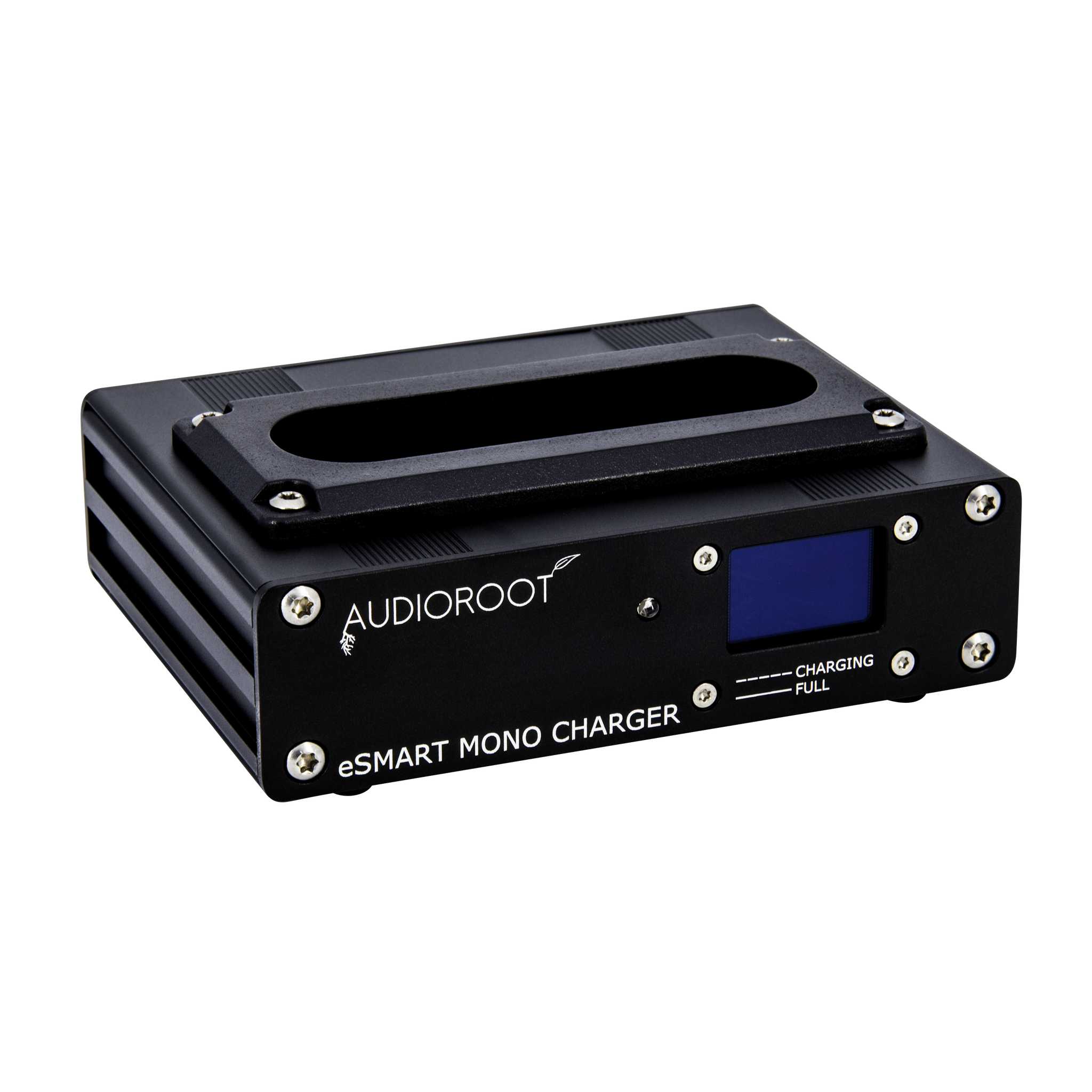

eSMART MONO battery charger

The eSMART MONO CHARGER is the compact and efficient little brother of the eSMART DUAL CHARGER. Designed for users who need a lightweight, portable solution for charging individual batteries, this single-bay desktop charger offers robust performance in a small footprint.

Built into a rugged yet lightweight aluminium housing, the MONO CHARGER is fanless and completely silent in operation—perfect for on-set or studio use. Despite its compact size, it delivers a powerful 2.0A charging current, capable of fully charging our smart batteries in under 3 hours.

A bright OLED display provides real-time battery data, including charge status, voltage, current, estimated time remaining, temperature, and cycle count. An LED indicator also gives quick visual feedback on charging progress.

Whether you're in the field or at your desk, the eSMART MONO CHARGER combines smart features, reliability, and portability in one sleek device.

🔧 Key Features

• 🧩 Single-bay smart charger – Optimized for eSMART batteries

• 🔇 Noiseless operation – Fanless design for silent environments

• 📺 Bright OLED display – Real-time charge data and battery health monitoring

• 💡 Status LED –

  • Flashing green: Charging

  • Solid green: Charge complete

  • Off: No battery inserted

• ⚡ Fast charging – Full charge in under 3 hours

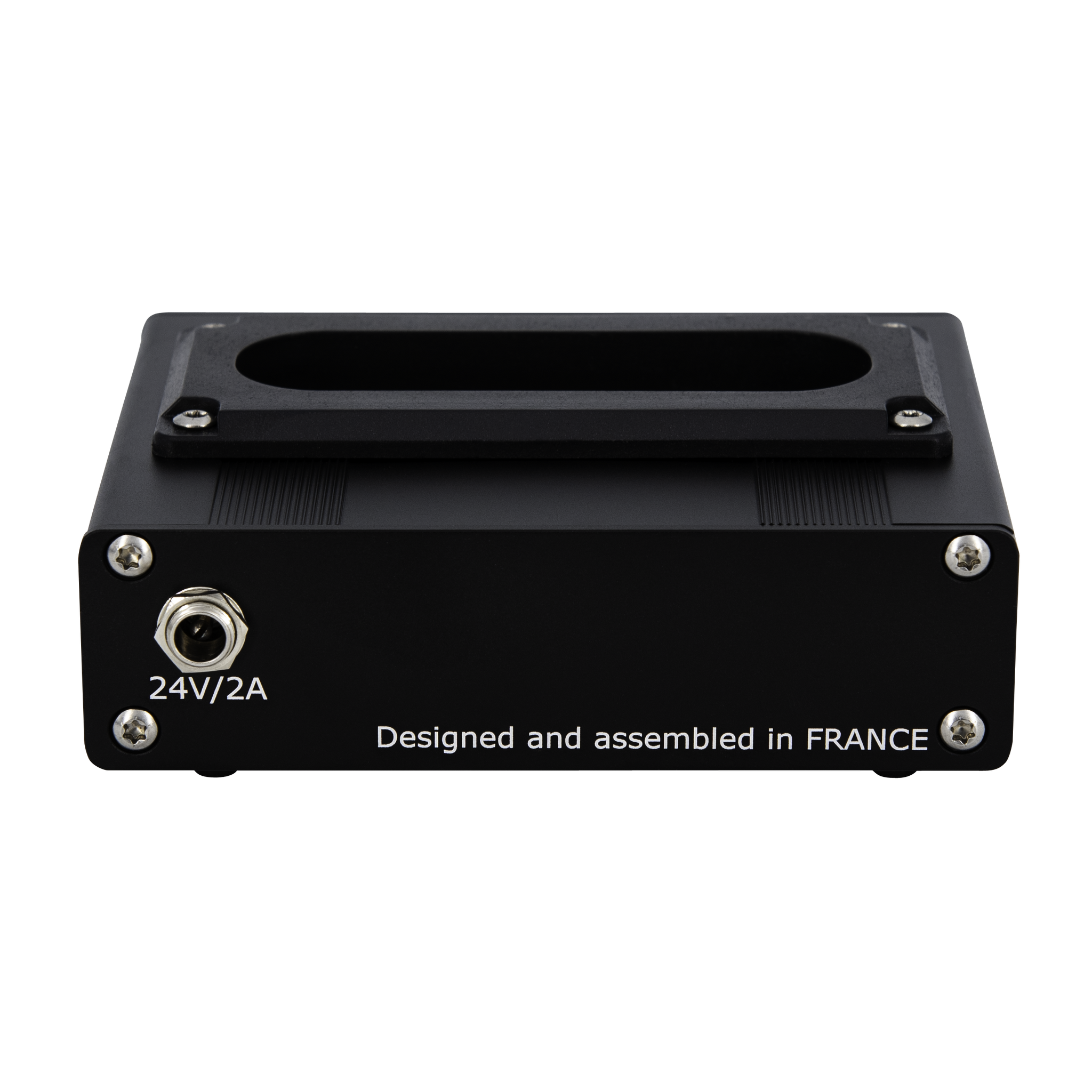

• 🔌 Universal power supply included – 90–260VAC input, 24V / 3A output

📐 Specifications

• ⚖️ Weight: 233g (575g with AC adapter)

• 📏 Dimensions: 89mm (L) × 109mm (W) × 36mm (H)

• 🔋 Max charging current: 2.0A

• 🔌 Mating connector: 5-pin standard smart battery connector

• 📊 Display: OLED + LED indicators

• 📦 Included: AC power supply

• 🚫 Battery not included
